MultiMount - Model SWB505 -Weigh Modules – Multi Purpose
For Efficient Installation and High Accuracy. SWB505 MultiMount weigh modules let you add weighing capabilities to your process by converting a tank, conveyor or other structure into a scale. They are designed for static and dynamic applications with no compromise on safety – all safety features are standard, including FM and ATEX Approvals. The proven rocker pin design and metrologically approved load cells provide the highest level of weighing accuracy. SWB505 MultiMount features including SafeLock ensure easy, safe and trouble-free installation and operation right from the start.

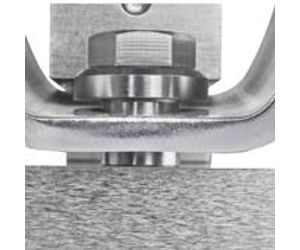

Lift-Off Protection
A robust lift-off bolt protects the scale against tipping that can be caused by strong winds, seismic forces, or collisions

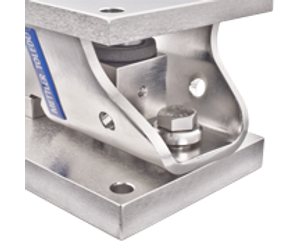

Safety Downstop
A vertical downstop supports the full weight of the loaded scale in case of catastrophic load cell failure

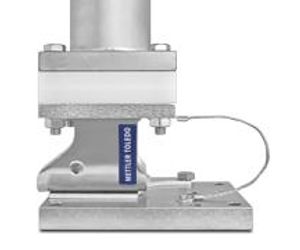

Integral Checking
Each weigh module is equipped with 360-degree checking to limit horizontal movement while allowing for thermal expansion and contraction
Versatile Design
The SWB505 MultiMount weigh module is designed to provide safe and accurate weighing in all types of static and dynamic applications.

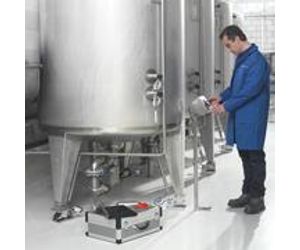

Easy Installation
The SafeLock locking plate maintains top-plate alignment to help ensure that your scale is installed right the first time
- Maximum Capacity: 5kg - 4.4t (11lb - 10000lb)
- Material: Zinc-plated, 304 or 316 stainless steel mounting hardware
- Applications: Silo, tank, hopper, and conveyor
- Mounting options: Compression
- Accessories: Dual stabilizer option
- Protection class: IP68 load cell, fully stainless steel
- Approval: OIML C3/C6, NTEP III M 5000/10000
- Hazardous area approval: ATEX and FM standard on each load cell
