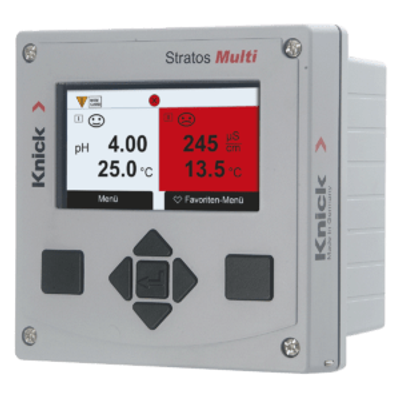

Stratos - Multiparameter Transmitter
The latest generation of our proven Stratos process analyzers for Memosens, digital, and analog sensors. Multiparameter functionality provides flexibility. High-resolution display for an intuitive, self-explanatory user interface. Advanced Process Control with Ethernet interfaces.
- 1- and 2-channel version with 4 current outputs and 3 freely configurable relay contacts
- Multiparameter for pH/ORP/conductivity/oxygen
- Self-explanatory, multi-lingual user interface
- TFT display with full-text menu
- 4-wire transmitter with broad-range power supply 24 … 230 V AC/DC
- Predictive maintenance for optimal process management:
- CIP/SIP and autoclaving counter
- Sensor diagram
- Remaining sensor service life
- Measurement with Memosens, digital, and analog sensors
- Secure digital interconnection of PCS, devices, and sensors via EtherNet/IP and PROFINET
- HART Communication
- Memory cards for data recording or firmware update
- Access control
Intuitive
Large widescreen display for a quick overview of all relevant measurement data. Self-explanatory user interface with intuitive icons and multicolor display.
Multiparameter
Freely combinable process variables pH, ORP, conductivity, and oxygen, also in 2-channel mode. Analog sensors can of course continue to be used for all parameters.
Use in Hazardous Locations
Stratos Multi E401X is also ideal for installation and operation in hazardous locations up to Zone 2. Equipped with intrinsically safe sensor inputs, the sensors can be installed in Zone 0/1.
Communicative
With the Stratos Multi transmitters E461N (PROFINET) and E471N (EtherNet/IP) comprehensive process and status data can be transmitted directly to the process control system. 20 AIs (Analog Input Blocks) are available for this purpose.
