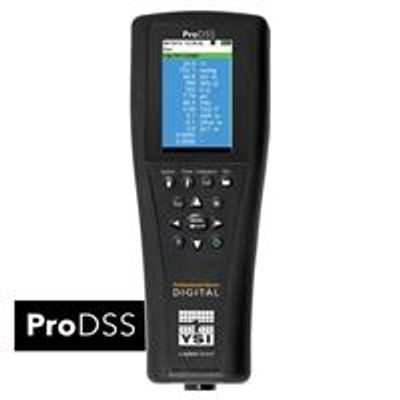

YSI ProDSS - Model 626870-1 -Multiparameter Water Quality Meter

• pH
• ORP/Redox
• Conductivity
• Specific Conductance
• Salinity
• Total Dissolved Solids (TDS)
• Resistivity
• Seawater Density
• Total Suspended Solids (TSS)
• Depth
• GPS Coordinates
• Ammonium
• Ammonia
• Chloride
• Nitrate
• Temperature
• Barometric Pressure

There are multiple features of the ProDSS:

• Single cable design with lengths up to 100 meters
• User-replaceable cables provide versatility, reduce down time and reduce overall cost of ownership
• 4 port cables feature user-replaceable sensors; universal ports can accept any 4 sensors; optional depth sensor available (with depth and no depth)
• ODO/CT probe and cable assemblies feature integral (built-in) optical DO and conductivity sensors; rugged ODO sensor cap with 2-year warranty is pre-installed on new assemblies; kits with an ODO/CT assembly and a ProDSS handheld are available
• Long-life rechargeable lithium-ion battery to power handheld and sensors
• Color display and backlit keypad; menu-driven operation
• Digital smart sensors are automatically recognized by the instrument and store calibration data
• Large memory (>100,000 data sets) with extensive site list and Data ID tag capabilities
• KorDSS software (included) and USB on-the-go connector assist with data management
• Global positioning system (GPS) (optional)
• Rugged, waterproof case (IP-67 rated) with rubber over-mold and metal, military-spec (MS) cable connectors as well as rugged titanium sensors
• Multiple languages: English, Spanish, Portuguese, French, German, Italian, Japanese, Norwegian, Chinese (simplified and traditional), Korean, and Thai
• 3 year instrument warranty; 2 year cable warranty (sensor warranties vary)

Not only have we answered our customers demands for a handheld instrument that can measure turbidity, the ProDSS can also measure depth (optional) in addition to pH, ORP, optical DO, conductivity, and GPS coordinates (optional).

There are many options when "building" a ProDSS instrument. In addition to the ProDSS 4 port cable and the ODO/CT probe and cable assembly, the ProDSS will also work with YSI ProODO sensor/cable assemblies to provide a DO only instrument. It`s also capable of using the ProOBOD optical BOD probe for use in the lab for BOD measurements.

The ProDSS is a true field instrument. The titanium smart sensors (4 port cables) can easily be replaced in the field and our durable MS (Military Spec) locking bayonet-style cable connector ensures quick cable connection. A rugged and waterproof (IP-67) rubber over-molded instrument casing provides protection from the demands of field sampling.

Some sensors are EPA approved for drinking water and wastewater compliance reporting.

Cables and sensors are sold separately.

• Benchtop Yes, optical BOD probe for the lab is available
• Buffer Recognition : Yes, auto-buffer recognition for USA (4.00, 7.00, 10.00) and NIST (4.01, 6.86, 9.18) buffer sets. Calibration values are automatically compensated for temperature for both buffer sets.
• Certifications : FCC, WEEE, UN Part III Section 38.3 test methods for lithium-ion batteries (class 9), RoHS, Assembled in USA, IP-67, 1-meter drop test, CE
• Connectivity / Communications : Built-in micro USB On-The-Go port for PC connection, recharging/powering the ProDSS and connecting directly to a USB stick
• Connector : MS (military spec) waterproof with quarter-turn bayonet lock (unsurpassed in regards to durability)
• Data Management : KorDSS desktop PC software (included), >100,000 data sets
• Desktop Software Compatible : KorDSS desktop PC software (included)
• Digital / Digital Sensors : Yes
• Flow Cell : Yes, flow cell is available
• GLP Compliance : detailed GLP information is stored and is available to view, download or print, Yes
• GPS : coordinates are stored with measurement data and site lists, Optional internal GPS
• Graphic Display : Color, LCD graphic display, backlit keypad
• Languages : Italian, German, Norwegian, English, French, Portuguese, Japanese, Chinese (Simplified & Traditional), Spanish
• Logging Capabilities : Single point or Continuous, Yes
• Measurement Method / Channels : Digital
• Memory : >100,000 data sets, 400 GLP files
• Multiparameter : Yes
• Operating Temperature : 0 to 50°C (32 to 122°F)
• Parameters Measured : Dissolved Oxygen (%), Dissolved Oxygen (mg/L), Temperature, Turbidity, Conductivity, Specific Conductance, Resistivity, Salinity, Water Density, pH, ORP, Ammonium, Nitrate, Chloride, Total Dissolved Solids (TDS), Total Suspended Solids (TSS), Depth, Barometer
• Power : Rechargeable lithium-ion battery pack providing ~48 hours of battery life (instrument only with backlight off)
• Sampling : Yes
• Security / Password Protection / UserID : Yes
• Size :
• Instrument: 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.27 in x 8.5 in x 2.21 in)
• Bulkhead with sensors, without depth (no guard): 33.3 cm (13.11 in) length - the length with the ISE sensors is 34.04 cm (13.4 in)
• Bulkhead with sensors, with depth (no guard): 35.84 cm (14.11 in) length - the length with the ISE sensors is 36.58 cm (14.4 in)
• Bulkhead with guard, without depth: 42.82 cm (16.86 in) length and 4.75 cm (1.87 in) outer diameter
• Bulkhead with guard, with depth: 45.36 cm (17.86 in) length and 4.75 cm (1.87 in) outer diameter
• Smart Sensors / Ports : 4 universal sensor ports on each cable, can accept any ProDSS sensor, Yes
• Storage Temperature : 0 to 45°C (32 to 113°F) with battery installed0 to 60°C (32 to 140°F) without battery installed
• User Calibratable : Yes
• User Replaceable : Yes
• Warranty : 3-year instrument; 2-year bulkhead, cable assembly, and sensors; 1-year pH and pH/ORP sensor modules, ODO (opticalDO) sensor caps, and Li-Ion battery pack; 6-months ammonium, nitrate, and chloride sensor modules
• Waterproof : floats, IP-67 (even with the battery cover off)
