Aquaread - Model Aquasonde Range -Multiparameter Water Quality Sonde with Internal Memory and Power

• Optical DO
• Specific EC
• Absolute EC
• pH
• ORP
• TDS
• Resistivity
• Salinity
• SSG
• Temperature
• Depth*

*Depth measurements available when using a vented cable.

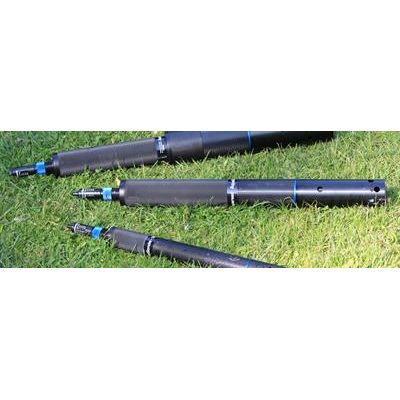

Aquasonde-2000

The Aquasonde-2000 has 2 spare ports. They can house either 1x ISE sensor and 1x Optical sensor. Or it can house 2x ISE sensor.

Aquasonde-5000

The Aquasonde-5000 has 4 spare ports. They can house any combination of ISE and Optical sensors.

Aquasonde-7000

The Aquasonde-7000 has 6 spare ports. They can house any combination of ISE and Optical sensors. All sensors fitted to the Aquasonde-7000 will be cleaned automatically by the built in self cleaning system. Cleaning is user configurable using the provided SondeLink software.

• Programmable. Fastest logging rate 0.5Hz. Slowest logging rate 120 hours.
• Event testing and logging on any single parameter programmable between 1 minute and 99 hours.
• Programmable cleaning rate (AS-7000 only)

SondeLink free PC application provides the following features via an integrated USB interface:

• Live data viewing
• Live data logging directly to PC
• Full calibration with calibration report generation
• Retrieval of logged data
• Logged data output to spreadsheet and text files
• Full setup utility
• Site name and GPS geotagging

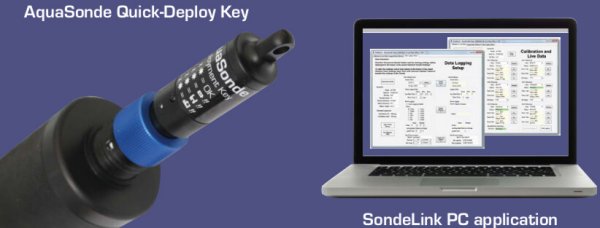

Each Aquasonde is supplied with a Quick Deploy Key. When fitted to the Aquasonde, this unique device performs the following tasks:

• Seals the connector.
• Automatically starts the pre-programmed logging regime.
• Provides instant visual indication of Aquasonde health, battery and memory condition. This allows all programming of the Aquasonde to be performed at your office using the PC application and the logging regime to be started at the precise time of deployment. It also provides peace of mind that the Aquasonde is operating correctly at the time of deployment.

• All models feature an internal barometric pressure sensor that is used when calculating Depth and percentage saturation of Dissolved Oxygen.
• If the Aquasonde is to be deployed for more than a day at a time and accurate Depth and %DO values are required, a vented cable is recommended.
• For profiling, dip testing or short-term deployment during which time the change in barometric pressure will be negligible, a vented cable is not necessary.

This option is a termination device for the vented cable that allows a desiccant bottle to be attached and provides a USB port for data retrieval and a visual indication of Aquasonde health, battery and memory condition.

By attaching a PC running SondeLink to the USB port, direct access can be gained to the Aquasonde allowing live data viewing, live data logging directly to PC, retrieval of logged data and full setup, all whilst the AquaSonde is submerged.

Bluetooth connectivity options for use with mobile apps. Embedded site data and GPS geotagging via the app. Coming late 2018.

Standard Parameters

• Dissolved Oxygen:
• Range: 0 – 500.0% / 0 – 50.00 mg/L
• Resolution: 0.1% / 0.01mg/L
• Accuracy: 0 – 200%: ± 1% of reading. 200% – 500%: ± 10%
• Conductivity (EC):
• Range: 0 – 200 mS/cm (0 – 200,000 µS/cm)
• Resolution: 3 Auto-range scales: 0 – 9999 µS/cm, 10.00 – 99.99 mS/cm, 100.0 – 200.0mS/cm
• Accuracy: ± 1% of reading
• TDS*:
• Range: 0 – 100,000 mg/L (ppm)
• Resolution: 2 Auto-range scales: 0 – 9999mg/L, 10.00 – 100.00g/L
• Accuracy: ± 1% of reading
• Resistivity*:
• Range: 5 Ωcm – 1 MΩcm
• Resolution: 2 Auto-range scales: 5 – 9999 Ωcm, 10.0 – 1000.0 KΩcm
• Accuracy: ± 1% of reading
• Salinity*:
• Range: 0 – 70 PSU / 0 – 70.00 ppt (g/Kg)
• Resolution: 0.01 PSU / 0.01 ppt
• Accuracy: ± 1% of reading
• Seawater Specific Gravity*:
• Range: 0 – 50 st
• Resolution: 0.1 st
• Accuracy: ± 1.0 st
• pH:
• Range: 0 – 14 pH / ± 625mV
• Resolution: 0.01 pH / ± 0.1mV
• Accuracy: ± 0.1 pH / ± 5mV
• ORP:
• Range: ± 2000mV
• Resolution: 0.1mV
• Accuracy: ± 5mV
• Temperature:
• Range: -5°C – +70°C
• Resolution: 0.01° C/F
• Accuracy: ± 0.5° C

Optional Parameters

• Depth **:
• Range: 0-60m (AP-2000 & AP-5000), 0 – 100m (AP-7000)
• Resolution: 0.01m
• Accuracy: ±0.5% FS (AP-2000 & AP-5000), ±0.2%FS (AP-7000)

**Option on the AP-2000. Comes as standard on the AP-5000 & AP-7000

Ion Specific Electrodes***

• Ammonium:
• Range: 0 – 9,000mg/L (ppm)
• Resolution: 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 9,000 mg/L
• Accuracy: ± 10% of reading
• Ammonia†:
• Range: 0 – 9,000mg/L (ppm)
• Resolution: 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 9,000 mg/L
• Accuracy: ± 10% of reading
• Chloride:
• Range: 0 – 20,000mg/L (ppm)
• Resolution: 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 20,000 mg/L
• Accuracy: ± 10% of reading
• Flouride:
• Range: 0 – 1,000mg/L (ppm)
• Resolution: 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 999.9 mg/L
• Accuracy: ± 10% of reading
• Nitrate:
• Range: 0 – 30,000mg/L (ppm)
• Resolution: 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 30,000 mg/L
• Accuracy: ± 10% of reading
• Calcium:
• Range: 0 – 2,000mg/L (ppm)
• Resolution: 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 2,000 mg/L
• Accuracy: ± 10% of reading

† Ammonium electrode required. Readings calculated from Ammonium, pH and temperature electrode values.

Optical Electrodes***

• Turbidity:
• Range: 0 – 3000 NTU
• Resolution: 2 Auto-range scales: 0.0 99.9 NTU, 100 – 3000 NTU
• Repeatability: ± 2% of reading
• Chlorophyll:
• Range: 0 – 500 µg/L (ppb)
• Resolution: 0.01 µg/L
• Repeatability: ± 2% of reading
• Phycocyanin (Freshwater Blue-Green Algae):
• Range: 0 – 300,000 cells/mL
• Resolution: 1 cell/mL
• Repeatability: ± 2% of reading
• Phycoerythrin (Marine Blue-Green Algae):
• Range: 0 – 200,000 cells/mL
• Resolution: 1 cell/mL
• Repeatability: ± 2% of reading
• Rhodamine WT Dye:
• Range: 0 – 500 µg/L (ppb)
• Resolution: 0.01 µg/L
• Repeatability: ± 5% of reading
• Fluorescein Dye:
• Range: 0 – 500 µg/L (ppb)
• Resolution: 0.01 µg/L
• Repeatability: ± 5% of reading
• Refined Oil:
• Range: 0 – 10,000 µg/L (ppb)
• Resolution: 0.1 µg/L
• Repeatability: ± 10% of reading
• CDOM/FDOM:
• Range: 0 – 2,000mg/L (ppm)
• Resolution: 2 Auto-range scales: 0.00 – 99.99 mg/L, 100.0 – 2,000mg/L
• Repeatability: ± 10% of reading or 2ppm (whichever is greater)
