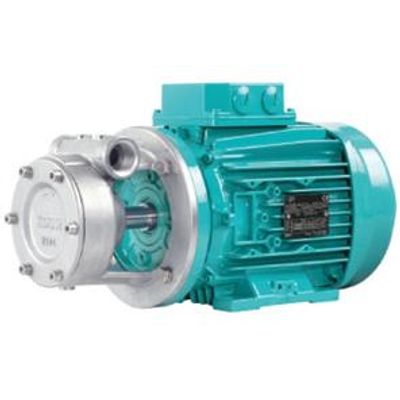

EDUR - Multiphase Pumps
Horizontal centrifugal pumps for the transport of liquid-gas mixtures and for the enrichment of liquids with gases. By multiphase pumps a dispersion with very fine bubbles is being achieved. Therefore the multiphase pumps are also suitable as dynamic mixer. Some main applications are biofuel plants, dissolved air flotation, neutralization, water treatment, bio-reactors, crude oil water separation on oil rigs and on oil fields as well as general process technology.
Most popular related searches
oil-water separator
horizontal centrifugal pumping
horizontal centrifugal pump
dissolved air flotation
gas mixture
dynamic mixer
centrifugal pumping
water treatment
air flotation
centrifugal pump
High Energy-Efficiency
- optimal enrichment and mixing of liquids with gases
- high degree of dispersion
- low velocity of flow
- optimized impeller approach flow
- low internal friction losses
- optimized head per stage
Technical Superiority
- open impellers without axial thrust
- compensation of radial forces by means of diffuser devices in the annular casing
- direct gas input acc. to VDMA 24430
Process Reliability
- gas contents up to 30 %
- stable creation of micro bubbles
Easy Installation
- modular construction system for customized solutions
- horizontal design
- bloc- or bedplate design
Easy Maintenance
Application
- operating pressure up to 40 bar
- temperature -40° C up to +140° C
- viscosity up to 115 mm2/s
