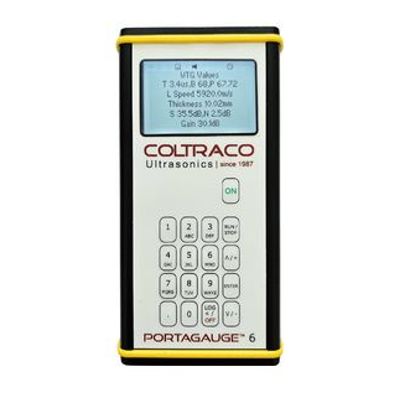

Coltraco - Model Portagauge 6 -Multiple Echo Ultrasonic Thickness Gauge
The Portagauge 6 is a multiple echo ultrasonic thickness gauge for measuring thicknesses of various metals and hard plastics, which ignores any coating up to 20mm in thickness. It comes with built-in datalogger to store up to 200,000 thickness measurements and minimum thickness alarm functionality.
Easily measure material thickness through paint layers/coatings without removing them. It is able to ignore paint coatings up to 20mm in thickness, giving you the material’s true thickness readings accurate to +/- 0.1mm.
The Portagauge® 6 ultrasonic thickness gauge measures through protective coatings, providing accurate and reliable thickness measurements. This helps you to determine the level of corrosion or erosion without the risk of causing further corrosion damage.
Perfect Companion for Wall Thickness Measurements
The Portagauge® 6 multi echo ultrasonic thickness gauge is a highly accurate and reliable thickness gauge for measuring the thicknesses of various metals and hard plastics, developed to meet BS EN 15317:2013 which is the standard for ultrasonic testing, characterisation and verification of ultrasonic thickness measuring equipment.
Some of the features of the Portagauge® 6 are:
- Built in database of 14+ different materials containing speed of sound data and an option to enter custom materials
- Measurement units available in both metric (millimetres) and imperial (inches)
- A-scan and oscilloscope trace functionality is included to assist your measurements
- Datalogging – Save readings directly with a press of a button
- For marine applications – meets Classification Society requirements and has an LCD backlight to allow working in dark, poor visibility spaces
- Battery life up to 12 hours continuous use on a standard 9V PP3 battery for easy replacement, with battery saving mode – turns off after 30 seconds of inactivity
- USB Power Connection – when plugged into a power source via the USB port, the Portagauge® 6 will run on USB power, preserving battery life, and allowing continuous use if connected to mains power.
- Portagauge® 6 Main Unit:Handheld and battery operated main electronic unit
- Standard 2.5 MHz (Model No. DE2.5-14) Dual-Element Ultrasonic Thickness Gauge Sensor:Most robust and widely used sensor option for metal thickness measurements
- 5mm Metal Test Block:25mm x 25mm metal block which is 5mm thick for testing if the equipment is operating correctly
- Ultrasonic?Couplant:For ensuring good contact between sensor and material
- User Manual:Contains further information regarding functionality of the instrument and how-to-use
- Calibration Certificate:As evidence that the unit has been tested and shown to be working before dispatch
- Robust Carrying Case:For portability and ease of carrying the equipment
- Dimensions
- Height: 168mm
- Width: 82mm
- Depth: 31mm
- Weight: 360g
- Measuring Range in Steel: 1.50mm – 100.00mm
- Material Types: Most metals and plastics, built-in database contains the following: Carbon Steel, Stainless Steel 304, Stainless Steel 316, Cast Iron, Ductile Iron, Copper, PVC, Lead, Nylon, Polyethylene (PE), Aluminium, Asbestos, Fibre Glass, Glass
- Accuracy: +/- 0.1 mm
- Resolution: +/- 0.01mm
- Measurement Units: Metric (mm) and Imperial (inches)
- Measurement Mode: Multiple Echo (ignores paint coating up to 20mm thick)
- Datalogging: 4 MB internal storage for datalogging, capable of recording up to 200,000 thickness measurements. Logs include date, time, a user-set identifier and thickness measurement and can be downloaded to a PC via the micro-USB port.
- Frequency: 2.25 MHz, 2.5 MHz, 5.0 MHz
- Display: Full 128 x 68 pixel graphics with backlight for working in poor visibility conditions
- Additional Features
- Custom material sound velocity input enables users to test custom materials
- A-scan functionality to observe material condition and verify correct return backwall echo
- Oscilloscope trace to assist in performing a good measurement
- Minimum thickness alarm, audible alert when thickness measurements drop below user-set minimum value
- Power Supply: 9V PP3 battery, up to 12 hours continuous use with auto shutdown after 30 seconds of inactivity 24/7 power option via micro-USB port
- Operating Temperature: Main Unit: -10°C to +65°C
- IP Rating: Main Unit: IP 65 enclosure
- Sensor Type: Dual element with 0.9m LEMO-00 cable
- Sensor Options
- 2.5 MHz – 14mm diameter sensor, most robust and reliable for metal thickness measurements
- 5.0 MHz – 10mm diameter sensor, for measuring pipes no smaller than 25mm (1”) diameter
- 5.0 MHz – 6mm diameter sensor, for measuring pipes no smaller than 15mm (1/2”) diameter
- Certifications
- CE
- Meets marine classification society requirements for marine thickness gauging inspection equipment
- Coltraco is ISO 9001:2015 and ISO 14001 approved
- Warranty
- Main unit – 3 Year Warranty
- Sensor – 1 Year Warranty
- Technical Support – Lifetime of the unit
