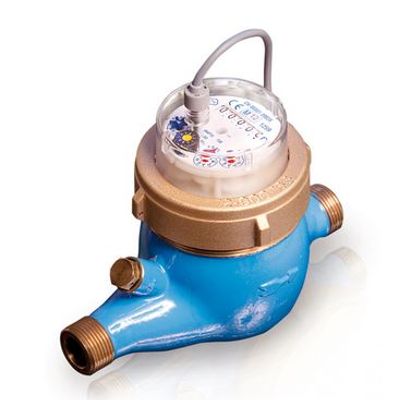

Fantini - Model ECCF..GMA -Multiple Jet Volumetric Warm Water Meter

SHARE

Multiple jet volumetric meter, warm water up to 90°C. The volumetric meter is used to measure the water flow that circulates in the sanitary cold water systems.

Most popular related searches
water metering
water meter
volumetric water meter
metering system
remote water meter
jet water meter
water monitoring
water circulator
remote water monitoring
sanitary water
  • The specific design and the high quality execution secure a long-term measuring stability.
  • Meter for cold water up to 50°C
  • REED IPG 14 sensor to transmit remotely the water metering measures.
  • Protection magnetic cover.
  • Dry clockwork with magnetic transmission.
  • Rotatable register at 360°C for an easier reading.
  • REED cable with 1.5 mt length, not extendable.
  • 10 litres/pulse.
  • Reading capacity: 9,9999 m³.
  • Minimum displayed value: 0,0001 m³.
Homologation
  • Complies with the European Directive 2004/22/CE from the European Parliament related to the measuring instruments (MID).
Installation and use
  • Horizontal installation, B-C class.
  • The volumetric meter is used to measure the cold water consumption, also through a remote indication.
  • The water meter is provided with an encapsulation snap that prevents the reading tampering.
  • The calibration adjustment is leaded with a proper fastener and allows the introduction of a leaded wire between the meter and pipe; this means an effective security against the undue removal or the position inversion.
  • Every volumetric meter is provided with a pulse emitter that, through a rotary magnet, converts the mechanical movement into an electromagnetic contact (REED contact) that releases electrical impulses with a frequency proportional to the turbine revolution number and consequently to the circulating water flow (an impulse every 10 litres, K10).
  • The meter has an overdrive protection: it disengages automatically the turbine transmission in case the air goes through the meter.
