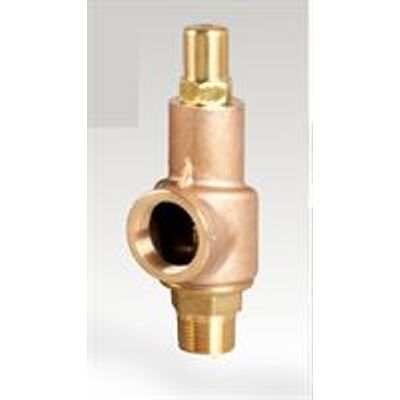

Aquatrol - Model 88 / 89 -Multiple Purpose Safety Valves

SHARE

Multiple purpose safety valves for air / gas protection. Designed for durability, yet an economical choice for safety and relief applications.ASME and National Board certified for Section VIII as well as CRN Certifications. Choose for a variety of applications where mid-level capacity is required.

Most popular related searches
pipe system
pressure pipe system
pressure pipe
air valve

Series 88 / 89

Durable and economical choices for safety and relief applications.

Usages:

Over pressure protection, Pressure vessels, Piping systems, Tanks, Compressors, Dryers, Inter- and After-coolers.

Features:

  • Adjustable tuned blow-down
  • Precision lapped metal-to-metal seating
  • Stainless steel springs
  • Ruggedly constructed
  • Closed seal hex cap or lever* option
  • Wide variety of inlet and outlet options
  • Disk-guided seat provides quick, accurate and excellent re-seating

Options:

  • Stainless steel inserts (seat and disk)
  • Stainless steel body and disk
  • Chrome plating/polishing
  • Oxygen cleaning
  • Female inlet
  • BSPT connections

Cryogenic:

  • Standard with PTFE seating
  • O2 cleaned and bagged
