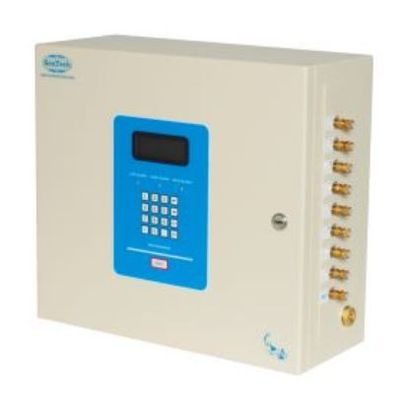

SenTech - Model SSG-MCD -Multiple Zone Fire Suppression Agent Loss Monitor

The SSG Monitors are advanced early warning loss detection and prevention monitoring systems designed specifically for fire suppression systems.

The SSG Monitors are advanced early warning loss detection and prevention monitoring systems designed specifically for fire suppression systems.

SenTech's SSG models are cost effective, self-contained monitors of halogenated gases that activate an alarm at a preset concentration that is programmed by the user. The Series includes single, four and eight zone models. SenTech's unique built in leak wait period minimizes nuisance false alarms.

SenTech SSG monitors provide 24/7 protection.

The SSG systems are based on an advanced infrared technology that can detect multiple gas types at concentration levels as low as one part per million (PPM).

The SSG Monitoring System reduces the risk of accidental suppression agent discharges by continuously sampling the air for halogenated compounds. In critical environments, Halon and FM-200 discharges occur more frequently by accident than by fire. The primary cause of agent discharges is refrigerant leaks from supporting air conditioning systems. By installing a SenTech SSG Monitoring System, this costly scenario can be avoided. One SSG Monitoring System can sample up to 16 zones and can be field programmed for various refrigerants and types of agents providing the earliest warning leak detection available today.

The SSG Monitoring System can interface with existing suppression system panels to automatically abort a Halon discharge due to a refrigerant leak, thus preventing the costly replacement of agents, and minimizing risks of downtime associated with a Halon system discharge.

SenTech's SSG Monitoring System is a cost effective solution for preventing critical downtime, avoiding business disruptions and suppressing system equipment failures.

• Detects Halon1301 and FM-200 Fire Suppression Agents
• Detects all halogen based refrigerants
• Compound type can be field changed without recalibration
• Continuous digital display of system status
• Analog output for remote monitoring
• System malfunction detection and indication
• Visual alarm indication
• Models are available to accommodate sampling points located up to 250 feet (76 meters) from unit
• Fresh air inlet for automatic rezeroing
• Individually adjusted alarm points for each gas type being monitored
• Multizone capability at a modest premium over single zone units

• SSG-MCD1 1 Zone, 3 Alarm levels
• SSG-MCD2 2 Zone, 3 Alarm levels
• SSG-MCD4 4 Zone, 3 Alarm levels
• SSG-MCD8 8 Zone, 3 Alarm levels
• SSG-MCD16 16 Zone, 3 Alarm levels

• 4-20ma analog output
• Individual zone alarm output relays
• Custom NEMA 4 Enclosure
• High volume air draw pump for harsh environments
• Ethernet interface with web server for remote access

• Sensitivity - As low as 1 PPM
• Weight - 32 lbs, (14.4 Kgs)
• Power Requirements  - 120 Volt 60 Hz or 230 Volt 50 Hz
• Range - 0 to 1000 PPM
• Alarm Trip Points
  Low Alarm 0 to 100% of Full Scale
  Main Alarm 0 to 100% of Full Scale
  High Alarm 0 to 100% of Full Scale
• Operating Environmental Range - 32 - 125 Fahrenheit / 0 - 50 Celsius
• Alarm Outputs
  Indicator Light
  Alarm Relays with 4 Form C contacts (5 amps maximum)

• Combination Horn/Strobe Alarm - 120 vac 60 hz , white light
• Combination Horn/Strobe Alarm - low voltage 24 vdc, white, amber or blue light
• Strobe Alarm - low voltage 24vdc, white, amber, blue, green or red light
• Power Supply - low voltage 24 vdc for low votlage alarms
• 250ft Roll of 1/4" O D Tubing
• Remote Reset Switch Assembly
• Remote PPM Indicator with Reset Switch
• Remote Hand Auto Switch Assembly - to control external devices in parallel with refrigerant monitor outputs
