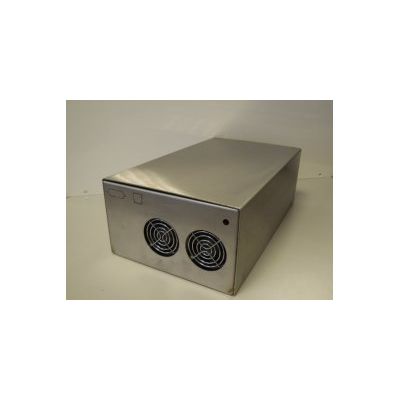

Leman - Model MPC2-ST & MPC2-HC -Multipoint Double Channel Permeation Calibrator

Characteristics: Final concentration: from 5 ppb to 5 ppm, depending on the permeation tube. Diluted gas: any gas stable in permeation tube between 35 and 80°C. Carrier gas: AIR, N2, CO2 and any other non-corrosive gas. Outflow: 500 to 1500 Nml/min during calibration ( per channel) . 50 to 80 Nml/min high concentration mixture rest of time ( per channel), Stability: +/-1% relative (final Precision depending on the permeation tube precision). Temperature: adjustable from 35°C to 80°C. Output pressure: 300 mbar maximum. Presentation: ½ 19” 3U rack casing (module) or 19” 3U rack casing. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.
