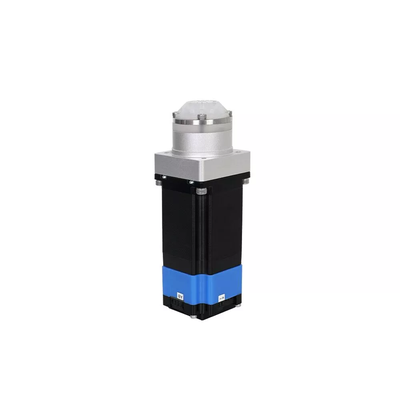

Chicoo - Model Z20-01 Series -Multiposition Selector Valve

The Z20-01 Multi-position Selector valve uses the encoder to collect the signal and relies on the stepper motor for control.

Most popular related searches

Core technology

PTFE valve core: corrosion-resistant, self-lubricating, suitable for a variety of special media;
Drive integration: the valve body motor control circuit is integrated inside, and the host can communicate with the controller through the RS485 protocol;
Resistance to strong chemical corrosion: only the valve body and valve core are in contact with the medium, and the valve body is made of special fluoroplastics, which can be applied to various corrosive liquids;
Wide selection: 6 to 16 hole switching valves with various hole positions are optional;
Sealing method: the stator and the rotor are closely fitted to achieve the highest service life and excellent sealing;
Drive mode: motor direct drive, more accurate positioning and higher precision;
Fully closed-loop control is adopted to ensure the reversing and positioning accuracy of the liquid circuit;
Accurate position feedback, the feedback position information is calculated by the encoder;
Stall information feedback;
Provide convenient configuration software tools to facilitate parameter configuration and debugging;
