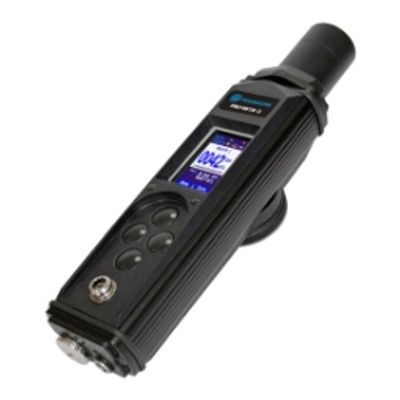

PM1401K-3P - Multipurpose Hand-Held Radiation Monitor/Identifier

Instrument performs continuous measurement of ambient dose equivalent rate of gamma and X-ray radiation in the wide energy range, monitors alpha, beta and neutron radiation, operates as spectrometer of gamma radiation and radioisotope identifier , and measures food/soil contamination with ¹³⁷Cs radionuclide.

Instrument is equipped with built-in audible and visual alarms, GPS module, USB interface for PC communication. Non-volatile memory allows recording and storing up to 10 000 events. PM1401K-3 has compact size and lightweight, bright and color LCD, shockproof hermetic case and can be used in both indoor and outdoor environments.

• 1401K-3? – modification is equipped with built-in alpha, beta and  gamma detectors, without neutron detection capabilities;
• 1401K-3P – modification is equipped with built-in alpha, beta, gamma and neutron (based on three scintillation units) detectors;
• 1401-3PM – modification is equipped with built-in gamma and neutron (based on three scintillation units) detectors, Bluetooth module, with dose equivalent measurement capabilities;
• PM1401K-3E – gamma-neutron modification without functions of ¹³⁷Cs activity measurement and radionuclides identification.

• The PM1401K-3 instrument
• Protective case
• Set of spacer rings (for α-, β-radiation measurement)
• Set of α-radiation filters (for α-, β-radiation measurement)
• USB Power Cable (for PC-communication and recharging and rechargable batteries)
• AA-LR6 batteries (2 pcs.)
• Belt Clip
• Operation Manual and Software Guide (CD-ROM)
• Calibration and Warranty Certificates

• External vibrator with the wristband (for operation in noisy environment and/or performing a hidden search)
• Calibration cap (for energy calibration check and calibration)
• Telescopic extension pole (for operating the instrument in remote and hard-to-reach areas);
• Additional neutron moderator (increases the instrument sensitivity to neutron radiation);
• Tripod (for measurement of the ¹³⁷Cs activity in solid/food water);
• Protective holster (for protection of the instrument)
• Set of Marinelli beakers (for measurement of the ¹³⁷Cs activity in soil/food water).

• Detector: CsI(Tl), GM, 6LiF/ZnS
• Dose equivalent (DE) measurement range: 1.0 μSv - 9.99 Sv
• Dose equivalent rate (DER) measurement range: 1 µSv/h – 10.0 Sv/h
• DE indication range: 0.01 μSv – 9.99 Sv
• DE measurement accuracy: ± 15 %
• DER measurement accuracy: ±(15 + 0.0015 / ?) %; where ? - measured dose equivalent rate value in mSv/h (in the range from 0.1 μSv/h to 100 mSv/h)
• Energy range:
• within the range of energies from 0.015 to 0.045 MeV : ± 40 %;
• within the range of energies from 0.045 to 15.0 MeV : ± 30 %
• Neutron count rate : from thermal to 14MeV
• of β- radiation flux : 0.15 – 3.5 MeV
• DER indication range: from 0.01 μSv/h to 200 mSv/h
• Energy response relative to 0.662 MeV:
• 137Cs, no more than : ± 30 %
• Alarm Type: audible
• Drop test on concrete floor: 0.7 m.
• Ingress protection: IP65
• Power supply: 3.0 (+ 0.2; -0.4) V; two AA batteries or USB
• Battery Lifetime: (in normal radiation background and provided LCD backlight, sound and light alarms are used no more than 5 minutes/day), at least : 210 h.
• Additional functions: Clock-calendar mode (time, date), timer mode (set of time intervals) , stop-watch mode (measurement of time intervals)
• Weight: ≤ 0.82 kg
• PC communication: USB interface
• Operating temperature: -30 to up to +50 °?
• Atmospheric pressure: from 84 to 106.7 kPa
• Dimensions: 262?60?65 mm
• Humidity: up to 95 % at 35 °?
• Mean service lifetime: ≥ 10 years
• Activity measurement sample density range: 0.2 – 1.6 g/cm3:
• Count rate indication range in the search mode: 1.00 – 2.7·105 s-1 - α-, β-, γ- radiation
• Indication range:
• gamma (in a search mode) : 1 – 9999 cps, neutron (in a search mode) : 0.01 – 999 cps
• Number of γ-radiation scintillation spectra saved in the instrument’s memory: up to 1000
• Sensitivity for β-radiation for 90Sr+90Y : ≥ 3.5 pulses·cm2
• Sensitivity to α-radiation (for Pu-239): ≥ 0.5 pulses·cm2:
• Sensitivity, neutron radiation for Pu-α-Be : ≥ 0.1 pulses·cm2
• for thermal neutrons : ≥ 3.5 pulses·cm2
• for Pu-α-Be (with neutron moderator) : ≥ 0.6 pulses·cm2
• α- radiation flux density accuracy on 239Pu in the range from 15.0 to 105 min-1·cm-2 : ±(20 + 450/φ) %, where φ - measured α-radiation flux density, -1·cm-2
• α-radiation flux density measurement range : 15.0 to 105 min-1·cm-2
• β- radiation flux density accuracy on 90Sr+90Y : ± (20 + 60/φ) %, where φ - measured β-radiation flux density, min-1·cm-2
• β- radiation flux density measurement range: 6.0 to 105 min-1·cm-2
