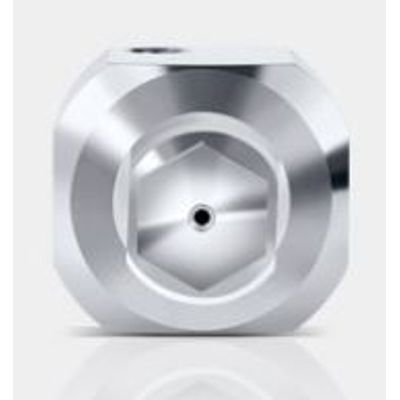

Schlick - Multispray Pressure Nozzles
In process engineering, the prevailing conditions change frequently. For this reason, SCHLICK Multispray can be used with all current atomisation technologies for two-substance nozzle (flat spray design and internal/external mixing) and pressure nozzle (hollow cone nozzles, full cone nozzles, flat spray nozzles and smooth jet nozzles) applications. The SCHLICK Multispray series enables the use of a wide range of compact and flexible atomisation nozzles.
Innovative product design for perfect spraying
- extremely easy to adjust for maximum flexibility
- basic system with pneumatic ON/OFF control which is therefore 100% drip-free
- completely homogeneous and reproducible spray results
- significant reduction in maintenance downtimes thanks to easy access to all components
- wide range of installation options thanks to modular construction
- functional components with surface quality of Ra < 0.8
100% drip-free: The nozzle needle closes the liquid outlet automatically and promptly by shutting off the control air. This is particularly suitable for spraying in cycles and especially when using pressurised liquids, for which dripping must be avoided.
Use as pressure nozzle
The SCHLICK Multispray adapter even enables the nozzle to be used as a pneumatically controlled pressure nozzle, without any dripping. Downtimes due to the complicated exchange of nozzle units are virtually eliminated because of a quiet simple conversion. SCHLICK Multispray thus enables the quickest possible response to new conditions. Ideal for carrying out lots of different processes.
Connectors
- Conrol air, G 1/8" (ISO 228)
- Connection for dummy plug or liquid outlet, G 1/4“ (ISO 228)
- Liquid, G 1/4“ (liquid inlet), (ISO 228)
