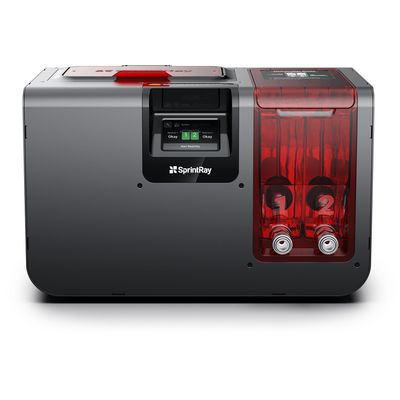

SprintRay - Model Pro Wash/Dry -Multistage Automated Washing System for Dental 3D Printing
SprintRay Pro Wash/Dry is the first fully-automated, two-stage wash and dry system built to deliver the speed, cleanliness, and ease-of-use demanded by the modern 3D printing dental clinic.
Fast
Pro Wash/Dry uses mechanical jetting to rapidly deliver IPA to printed parts. This unique method provides excellent agitation, reducing wash duration while offering improved cleaning power.
Clean
Thanks to a suite of automatic features, the only time you have to touch IPA is when you pour it into the reservoirs. Automatic pumps recycle alcohol, and quick-connect hoses whisk it away.
Easy
Pro Wash/Dry was designed with input from the dental community. Inspired by DIY kits all over the world, we leveraged the latest technology (and invented some of our own) to deliver a superior washing experience.
Fluid Mechanics: The Stuff of Patents
You’ve never washed parts like this before. Thanks to its high-powered motor, precisely manufactured propeller, and innovative alcohol delivery method, Pro Wash/Dry can complete a full two-stage wash and dry in less than nine minutes.
10 Minutes Wash/Dry
2 Cycle Wash + Rapid Dry
Submerging your parts in IPA can get the job done, but it results in a lot of waste alcohol. Pro Wash/Dry uses a patented method to agitate and clean without full submersion. The result: cleaner parts, less waste, and faster workflows.
3 Cycles, One Touch
Set and Forget: Hands-free Process
Pro Wash/Dry was built to be used with SprintRay Pro. Once your print job is finished, simply place your platform in the cradle and press 'Start'. Pro Wash/Dry will automatically perform a two-stage wash and then dry your parts.
Effortless Speed
Efficiency to Write Home About
Pro Wash/Dry can operate with a little as a half-liter of alcohol thanks to the unique way it delivers IPA to your parts. It's a small victory for your pocketbook, a big win for the environment, and a quantum leap in 3D printing wash efficiency.
500mL to Start
Touchless Alcohol Recycling
Advanced electronics and mesh-wire plumbing connect all the chambers in Pro Wash/Dry. Recycle dirty alcohol from one chamber to the other with the press of a button. No mess required.
Reduced Waste
Quick-connect IPA Draining
To drain IPA from Pro Wash/Dry, we've provided a quick-connect hose. It snaps into place, creating a water-tight seal instantly. When you're finished draining, simply press the release ring to instantly stop the flow.
Clean IPA Removal
We know that one of the most precious resources in a dental clinic is time. So in addition to making Pro Wash/Dry run an extremely fast cycle, we made it dead simple to operate. If your staff can operate a smartphone, they can use Pro Wash/Dry with very little training. And to reduce maintenance, we sourced innovative materials that are resistant to chemicals.
Industrial Grade Materials
Made with an aluminum chassis and chemical-resistant, translucent plastic, Pro Wash/Dry requires almost no maintenance.
Shrouded Control Panel
To prevent chemicals from dripping onto the touchscreen computer, we set the electronics back under a small shroud. One less thing to worry about.
Automatic Wash Mode Detection
Pro Wash/Dry was designed to fit the SprintRay Pro build platform. But when you need to wash loose parts, simply insert the basket, close the lid, then hit start.
Automatic Stop/Start Failsafe
If you remove the platform or open the lid during a wash cycle, you don't have to worry about creating a mess. Automatic Stop safeguards your workspace.
Fill Level Sensors
Pro Wash/Dry knows how much IPA it has in each chamber, so if there is insufficient volume it will gently remind you to add more.
Overflow Protection
With extra tolerances built-in to the reservoir designs and sensors monitoring fill levels, you'll feel confident no matter who uses Pro Wash/Dry.
Platform Wash Envelope: 17 x 12.7 x 7.6 cm; 7 x 5 x 3 in
Basket Wash Envelope: 17 x 12.7 x 12.7 cm; 7 x 5 x 5 in
Liquid Level Monitoring System: Conductive Sensor
Liquid Saturation Monitoring System: 2 Pre-calibrated Hydrometers
Wash Liquid Compatibility: Isopropyl alcohol 91% (Recommended); Isopropyl alcohol 99%; Ethanol
Liquid Disposal Method: 2 Standard Quick Connect Drain Ports; 1 Quick Connect Drain Hose with Automatic Cut-off
Wash Liquid Capacity: 2 liters per reservoir
Minimum Wash Solution Required: 500 mL Per Reservoir
User Controls: 3.5" color touch-screen; Pre-defined Wash/Dry preset
System Controls: Microcontroller with upgradable firmware via USB
Safety Sensors: Automatic Start/Stop Sensors; Platform vs Basket Detection; Fill Level Sensor
Power Requirement: 100–240v (Via DC Adapter)
Dimensions: 30 x 30 x 46 cm; 12 x 12 x 18 in
Packaging Dimensions: 36 x 36 x 50 cm; 14 x 14 x 20 in
