Zhejiang Doyin Pump Industry Co., Ltd.

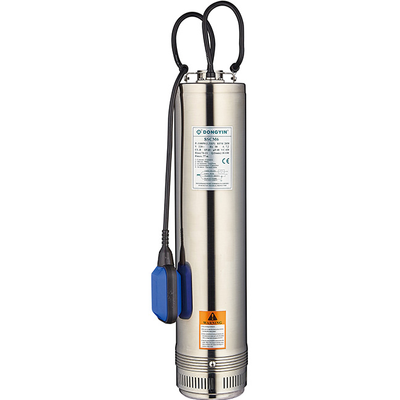

Doyin - Model SSCM Series -Multistage High Head Submersible Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2`` to 10`` which are designed for transferring water from wells, ponds, lakes and cisterns. SSCM series are suitable for wells over φ125mm. SSCM series pump is 5inch integrated submersible pump which is designed to pump water from bottom inlet. They are suitable for transferring water without abrasive particles, for well water lifting, farm irrigation, garden irrigation and living water supply,industrial water eliminating, construction water supply and drainage, breeding industry water supply and drainage, etc.
Most popular related searches
submersible pump
deep well submersible pump
water supply
industrial water
well water
water industry
construction site water
deep well
float switch
deep well pump
- Maximum fluid temperature up to +35?
- Maximum sand content:0.15%
- Minimum well diameter: Φ130mm
- Rewindable motor
- Single-phase:220-240V/50Hz
- Three-phase:380-415V/50Hz
- Equip with start control box or digital auto-control box
- It`s available to equip with floating switch
- Curve tolerance according to ISO 9906
