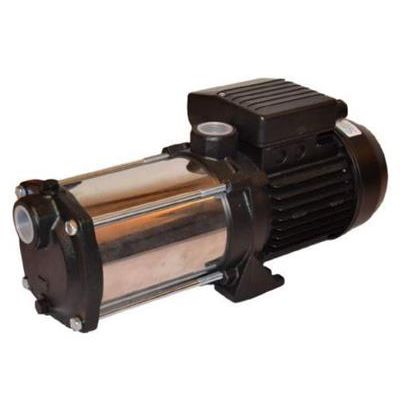

Soggia - Model SM -Multistage Horizontal Pumps
FromSoggia Srl
Multistage horizontal pumps from 4 up to 6 impellers. The SM serie develops good hydraulic performances, a very low noise while running and are suited for use in civil and industrial applications, in high pressure irrigation and car washing systems. We always recommend the use with liquids chemically and mechanically cleaned, and with temperatures not higher than + 80 ° C.
Most popular related searches
horizontal multistage pump
multistage pump
surface electric pump
vehicle washing system
car wash system
pool pump
electric pump
washing system
car wash
drinking water
- Max capacity: 160 l/min (9,6 m³/h)
- Max head: 74 meters
- Rotation speed 2850 r.p.m.
- Continuos service.
- Maximum suction height : 7 meters
- Potable water
- Home pressure increasing
- Small/medium garden irrigation
- Drainig tanks and pools
- Pumping clean water even on industrial machinery
- Multistage pump horizontal axis.
- Pump body and Motor Bracket in cast iron G20
- Stainless steel casing
- Stainless steel shaft
- Mech. Seal in ceramic/graphite
- Impeller in Noryl
- Electrical closed-type with external cooling fan
- Protection class IP 44
- Class of insulation F
- Single-phase motor at 220-230 V - 50 Hz; fitted with a thermal protector to avoid damages to the motor.
- Three-phase at 230/400 V - 50Hz; protection must be provided by user.
