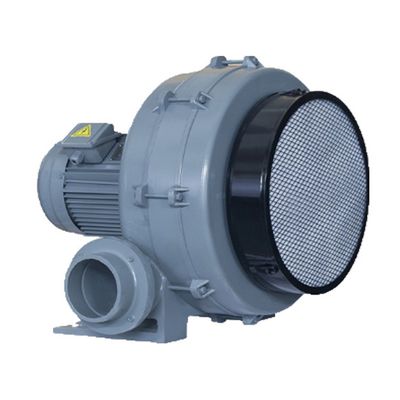

LUOMEI - Model HTB -multistage Medium Pressure Centrifugal Blower Fan
sinlge stage to five stageHTB centrifugal blower with medium pressure.
HTB75-032, 0.4KW, 3 phase 220/380V, at 50Hz maximum airflow 6m3/min, max pressure 2.1Kpa, inlet/outlet 75mm.
at 60Hz maximum airflow 7m3/min, max pressure 2.6Kpa,
HTB75-053, 0.4KW, 3 phase 220/380V, at 50Hz maximum airflow 6.5m3/min, max pressure 2.9Kpa, inlet/outlet 75mm.
at 60Hz maximum airflow 7.5m3/min, max pressure 3.8Kpa,
HTB75-104, 0.75KW, 3 phase 220/380V, at 50Hz maximum airflow 6.5m3/min, max pressure 3.7Kpa, inlet/outlet 75mm.
at 60Hz maximum airflow 8m3/min, max pressure 5Kpa,
HTB75-105, 0.75KW, 3 phase 220/380V, at 50Hz maximum airflow 6.8m3/min, max pressure 4.2Kpa, inlet/outlet 75mm.
at 60Hz maximum airflow 8.5m3/min, max pressure 6Kpa,
HTB100-102, 0.75KW, 3 phase 220/380V, at 50Hz maximum airflow 11m3/min, max pressure 3.4Kpa, inlet/outlet 100mm.
at 60Hz maximum airflow 13m3/min, max pressure 4.5Kpa,
HTB100-203, 1.5KW, 3 phase 220/380V, at 50Hz maximum airflow 11m3/min, max pressure 5Kpa, inlet/outlet 100mm.
at 60Hz maximum airflow 14m3/min, max pressure 7Kpa,
HTB100-304, 2.2KW, 3 phase 220/380V, at 50Hz maximum airflow 12.5m3/min, max pressure 6.5Kpa, inlet/outlet 100mm.
at 60Hz maximum airflow 16m3/min, max pressure 9Kpa,
HTB100-505, 3.7KW, 3 phase 380V, at 50Hz maximum airflow 12.8m3/min, max pressure 7.9Kpa, inlet/outlet 100mm.
at 60Hz maximum airflow 16.5m3/min, max pressure 11Kpa,
HTB125-503, 3.7KW, 3 phase 380V, at 50Hz maximum airflow 19m3/min, max pressure 5.8Kpa, inlet/outlet 125mm.
at 60Hz maximum airflow 23m3/min, max pressure 7.9Kpa,
HTB125-704, 5.5KW, 3 phase 380V, at 50Hz maximum airflow 19m3/min, max pressure 5.8Kpa, inlet/outlet 125mm.
at 60Hz maximum airflow 23m3/min, max pressure 7.9Kpa,
HTB125-1005, 7.5KW, 3 phase 380V, at 50Hz maximum airflow 20m3/min, max pressure 9Kpa, inlet/outlet 125mm.
at 60Hz maximum airflow 24m3/min, max pressure 13Kpa,
HTB200-1502, 11KW, 3 phase 380V, at 50Hz maximum airflow 52m3/min, max pressure 7Kpa, inlet/outlet 200mm.
at 60Hz maximum airflow 65m3/min, max pressure 9Kpa,
HTB200-1503, 15KW, 3 phase 380V, at 50Hz maximum airflow 56m3/min, max pressure 8Kpa, inlet/outlet 200mm.
at 60Hz maximum airflow 70m3/min, max pressure 10Kpa,
welcome to contact us, Foshan Luomei Electric Techink Co.,Ltd; Email: luomeiele@gmail.com, whatsapp 008618823126158
