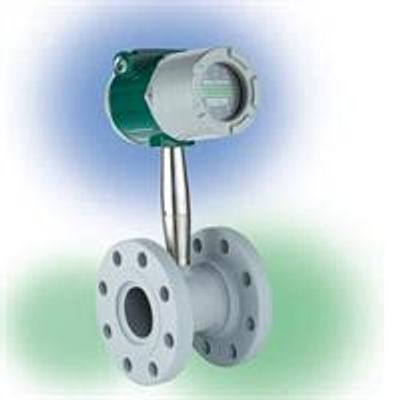

iCenta - Model Pro V M22 -Multivariable Inline Vortex Flow Meter
Pro-V multivariable flowmeters utilize three primary sensing elements–a vortex shedding velocity sensor, an RTD temperature sensor, and a solidstate pressure transducer–to measure the mass flow rate of gases, liquids and steam. Systems that use external process measurements to calculate mass flow may not provide adequate compensation for the fact that process conditions can change radically between the point of velocity measurement and the point where upstream or downstream pressure and temperature measurements are being made. Because the Pro-V multivariable flowmeter measures all of these parameters in a single location, it delivers a more accurate process measurement.
Integrating multivariable output capability with a single line penetration also simplifies system complexity and helps reduce initial equipment cost, installation cost and maintenance costs. The product line is available with a wide range of options and meter configurations to meet your specific application requirements.
- Easy to install
- High level of accuracy
- Reliable–no moving parts
Features of the Pro-V M22 include:
- Volumetric or mass flow monitoring of most liquids, gases, and steam
- Multivariable meter delivers mass flow, temperature, pressure, and density readings from a single installed device and reduces initial cost, installation cost and cost-of ownership over the lifetime of the instrument
- Compensated mass flow reading of liquids, gases, and steam
- Energy Monitoring–ability to compute and output energy use
- Easy to install and commission
- Reliable–no moving parts, no fluid to sensor contact
- High accuracy with rangeability up to 100:1
- Temperature up to 750°F
- Pressure up to 1500 psig
- Inline configuraton for pipes from 1/2”- 8” DN15 to DN 200
- Field configurable ranges, outputs and displays
- Remote electronics option available for use in harsh environments or locations with limited access
- 4-20mA loop– powered Mass Meter design saves on energy costs
- HART protocol communications – Standard
- Modbus communications available
- FM, FMC, ATEX, IECEx Approved
A series of precision multivariable in-line vortex flow meters utilising three primary sensing elements: a vortex shedding velocity sensor, an RTD temperature sensor, and a solid-state pressure transducer to measure the mass flow rate of liquids, gases and steam in commercial, industrial and municipal applications.
Specification Detail of the Pro V M22 Inline Vortex Flow Meter:
- Pipe Size : DN15 – DN200
- Material Body : Carbon, stainless steel or hastelloy
- Flow Range : 0.2 970 m³/h
- Accuracy : 1.2 %
- Operating Temp Range : -40 to 85ᵒC
- Pressure Range : 2 – 175 bar
- Outputs & Comms : HART, Modbus, pulsed, analogue
- Insertion / Inline : Inline / Insertion
- Fluid Type : Steam, various gases and liquids
- Applicable Liquids : Liquids, gas, steam
- Power : 4-20mA
- Approvals : FM, FMC, ATEX, IECEx
- Connection Type : Flanged ANSI, DIN, JIS
