MVS - Pure Hydrogen Plant
Water electrolysis using bipolar high-pressure technology is the simplest and fastest technology for hydrogen production and only requires power and deionized water for hydrogen production. We offer systems ranging from 0.25 Nm3/hr production capacity to single electrolyzers having capacity as high as 500 Nm3/hr. Higher capacities require multiple electrolyzers with common subsystems.
The functionality and specifications of MVS water electrolysis hydrogen plant and the advantages include:
- Skid mounted construction for bipolar systems and panel construction for PEM generators from Proton NEL
- Ease of installation – system handed over in under a week
- Fully automatic operation by PLC control
- Systems can be designed in load following or tank filling mode
- Efficient production by using power efficiently thereby keeping your cost of production as low as possible
- Best in class instrumentation and code adherence for Hydrogen safety
- High pressures up to 700 bar(g) using booster compressor available as add-ons
- MVS Hydrogen Gas Generator Built for Indian climatic conditions

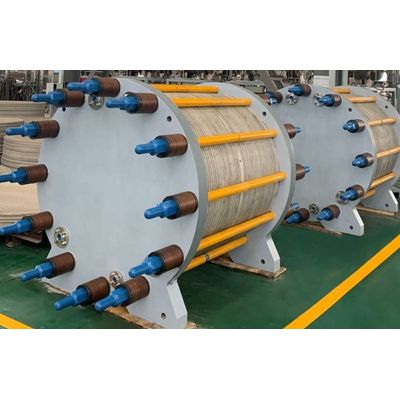

Bipolar Technology – Using Alkaline electrolyte
Our Electrolyzer is of Bipolar design where high purity DM water is broken to H2 and O2 using DC power supplied by rectifier. Hydrogen is evolved on cathode side of cells and oxygen on anodes of cells. The design makes our Electrolyzer unit very compact in size. This is a specially developed cell unit producing gases at high pressure 15 Bar directly. So, no Hydrogen compressor is needed for medium Hydrogen pressure requirements.
Proton Exchange Membrane (PEM)
The electrolyser is based upon proton exchange membrane technology. Hydrogen gas is generated at the cathode at customer convenient pressures. Oxygen gas is produced at the anode at pressures close to ambient. The near infinite bubble point of the membrane prevents oxygen from entering the hydrogen stream. The full differential pressure design provides for safe, simple operation.
