Nagman Instruments and Electronics Private Limited

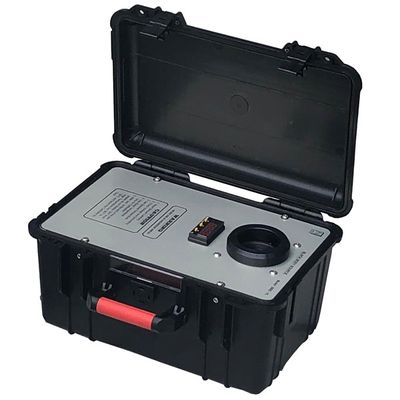

NagmanModel BBS-VL -Black Body Calibration Source

SHARE

Nagman Instruments and Electronics Private Limited offers a versatile range of Black Body Calibration Sources, designed to provide precise temperature calibration in various settings. These devices are suitable for both portable and table-top configurations, meeting the diverse needs of industrial calibration requirements. Known for their reliability, these sources are equipped to handle different temperature ranges, ensuring accurate thermal measurement and calibration. The BBSM model is adept at medium temperature calibration, while the BBSH model is designed for high temperature applications. Additionally, the BBSD model offers simultaneous measurement capabilities for low and medium temperatures, making it a flexible solution for different calibration needs. These products cater to professionals who require precise thermal calibration solutions, providing robust performance across different technical applications.

Most popular related searches
  • Compact, Light Weight & Portable
  • High Emissivity, Wide Aperture
  • Excellent Accuracy & Stability
  • Auto-tune PID Controller
  • Low Power Consumption
  • Cost-effective – Best value for Money
  • Range: 10°C to 45°C
  • Accuracy: Within 0.75% F.S.
  • Emissivity: 0.98
  • Aperture Dia: 30 mm
  • Stability: ±0.5°C
  • Resolution: 0.1°C
  • Temperature Control: Auto-tune PID Controller
  • Temperature Readout: °C / °F Selectable
  • Heating Time (Ambient to max.): 5 Minutes
  • Stabilization time (above 75°C): 15 Minutes
  • Power Supply: 100 to 230V AC / 50 Hz / 50 W
  • Housing / Mounting: Benchtop, Portable
  • Dimensions (L x B x H): 330 x 240 x 180 mm
  • Weight: 7 Kgs
  • Basic Instrument
  • Mains Cable
  • Spare Fuses
  • Traceable Calibration Certificate
  • Instruction Manual
  • Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
