GBS Elektronik - NaI Detectors
NaI detectors are probably the most widely used detectors for gamma spectroscopy. They have sufficient resolution, they are available in relatively large crystal sizes, to provide excellent sensitivity at moderate prices. The resolution of the detectors is typically 5.8% - 7% (relative half-width at 662 keV). Characteristically, the smaller size detectors mark a better resolution.
Most popular related searches

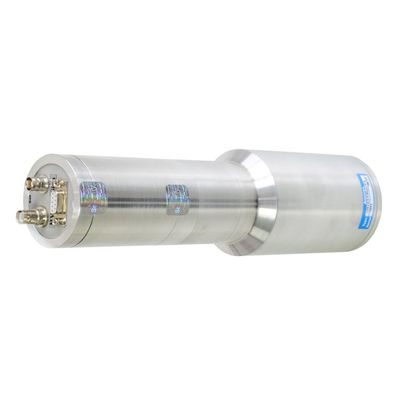

- The detector contains the crystal, photomultiplier, voltage divider and preamplifier in a housing
- The detector consists of PMT and crystal in a housing with Jedec connector
- The cover of the crystal has a wall thickness of 1 mm and is made of aluminum
- SHV for high voltage (typical -600...-1000 V)
- BNC for preamplifier signal output
- Sub-D9 for preamplifier power supply (+/-12 V)
- 3m connection cable available
- Jedec B14 or Jedec B12
- Functional Tripod for upright placement of detector
- Customized lead shielding
