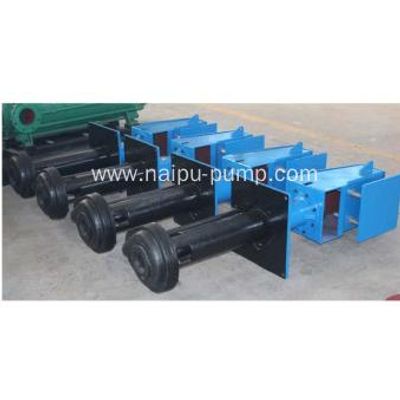

Naipu - Model 65QV-SPR -Gold Mining Vertical Slurry Pump

Detail of our vertical slurry pump,vertical sump pump, vertical pump, vertical Mining Pump, sump pump, Vertical Slurry Pumps:

• Outlet Diameter: 40-300mm
• Capacity: 8-1200 m3/h
• Head: 10-50m
• Rotation Speed: 980-2950r/min
• Power: 0.75-110kW

 Features of our vertical slurry pump,vertical sump pump ,vertical Mining Slurry Pump,vertical mining pump, mining pump:

anti corrosion vertical slurry pump,stainless steel vertical slurry pump,vertical slurry pump 304SS Wet parts

High Efficiency Non-block up

The uniquely designed single, double-gate impeller, opening model, double leaf model impeller is high effective without block-up, the pump casing etc. flow- through parts designed for completing with the impeller can be selected with their materials and models upon the transported media and can be made sure of the excellent hydraulic performance and working life in the transportation of the media containing suspended grains and long fibers, corrosive and abrasive.

Stable; Durable without vibration

Vertical slurry pump is vertically structured, the drive unit(motor stand, clutch, drive shaft, connecting stand, bearing)is modular designed and can be superposed at will along with the variation of the under-water depth. Both pump casing and impeller can be placed under liquid by 0.5-10m and the motor above the liquid surface, then, via connection with the drive unit, direct ly drives the non block impeller to stably run without vibration.

Easy use; Long durability

The impeller is submerged in water and easy to start. An automatic liquid-level control cabinet can be fitted with if so required by users so as to get the liquid-level to co-ntrol the pumps starting and stopping, without need of a special person to look after.

Solid maintenance-free design, good rigidity of the pump shaft and fully-closed roller bearing of a famous brand. The pre-injected high-temperature withstanding lubricating grease

• Impeller Number: Single-Stage Pump
• Working Pressure: Middle Pressure Pump
• Influent Type of Impeller: Single Suction Pump
• Position of Pump Shaft: Vertical Pump
• Pump Casing Combined: Verticaljoint Surface Pump
• Mounting Height: Suction Centrifugal
• Impeller: Open
• Usage: Pump
• Size: 65 Mm
• OEM: YES
• Bearing Brand: ZWZ, SKF, Timken...
• Certificate: CE, ISO9001, SGS...
• Flow Rate: 22-105 M3/h
• Head Rate: 5.5-30.5 M
• Max Power: 30 Kw
• Material: R55, R36, S31, S42...

• Packaging: Export wood cases
• Productivity: 500 sets / month
• Brand: Naipu
• Transportation: Ocean,Land,Air
• Place of Origin: Shijiazhuang, China
• Supply Ability: 500 sets / month
• Certificate: CE, ISO9001
• HS Code: 8413709990
• Port: Tianjin,Qingdao,Shanghai
