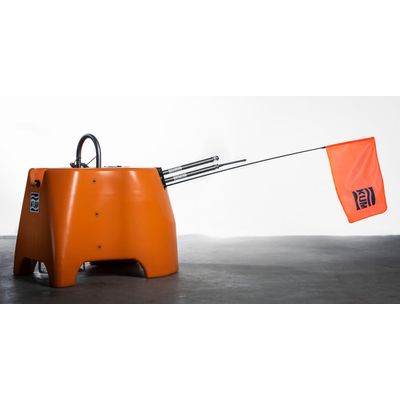

NAMMU - Model K/MT4230 -Ocean Bottom Seismometer
Up to 50 units can be transported in one 20-foot shipping container. Easy and intuitive programming is offered over a web interface via Wi-Fi – accessible from your laptop or smartphone. No special software is required. Usually a free-falling system, it can also be deployed by ROV.
THE EXPERIMENT
Deployments of up to three years are possible due to low power consumption with reliable storage of vital instrument data and metadata. Good coupling is facilitated through a compact instrument design and an aquadynamic shape enables industry-leading low levels of external noise.
THE RETRIEVAL
Extremely reliable acoustic release is key for retrieval. Other features include quick location of the instrument with radio beacon and flasher, as well as fast data download via external memory StiK. Easy, fast data conversion to mSEED is possible via our portable open-source software.
Application:
Not applicable for this product
Features / Benefits:
Frame
Made from corrosion-resistant titanium and durable syntactic foam, the frame offers buoyancy in a shock-resistant and robust package that can easily endure the forces of the sea. The unit’s small size makes it possible to deploy more systems than ever before.
Sensors
There is a seismometer for every use case ranging from broadband seismometers to high-frequency geophones. A hydrophone complements the seismic data for extended precision.
Datalogger 6D6
The Datalogger 6D6 is a flexible data acquisition system with the lowest power consumption on the market and outstanding data quality. It features an easy programming interface accessible via Wi-Fi and large storage capacities to enable extended deployment of up to three years.
Acoustic Releaser
The releaser brings the instrument back to the surface in perfect condition. It is the world’s smallest, most lightweight titanium release unit – fully reliable in even the most challenging circumstances.
TECHNICAL DATA
Weight with 80 Li-Cells: In air (In salt water)
Weight without anchor Weight with anchor: 156 kg (-13 kg) 205 kg (30 kg)
Weight of pressure tube Weight of Releaser KUMQuat: 45 kg (33,6 kg) 11 kg (6,4 kg)
Maximum operation depth: 6000 m
Maximum operation time: 13,7 months (80 LiThCl D-cells) 36 months with optional battery backpack unit
Size without flag w × h × d: 635 mm × 770 mm × 800 mm
Anchor size: 800 mm × 600 mm
Seismic Sensors: 120 sec broadband seismometer or 4.5 Hz Geophones
Pressure Sensor: 100 sec Hydrophon HTI-04-PCA ULF or Differential Pressure Gauge (DPG) or Absolute Pressure Gauge (APG)
Data Logger: K.U.M. 6D6: 4 channels at 32bit at 142db
Releaser: KUMQuat 562
