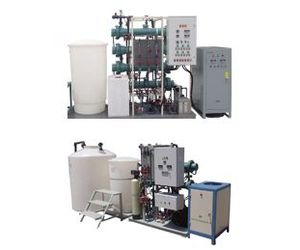

Newtec - Model nt-CLE -NaOCI Electrolyser Equipment for On-Site Production
Product: low concentrated NaOCl with 0.8% part of chlorine. The NaOCI electrolyser of the nt-series is modern equipment for the local production of NaOCI solution for different disinfecting applications. The basic principle of it`s operation is the following one: If a specific voltage is applied in the electrolytic tube without membrane which contains a 3% NaCI solution, a series of electrolytic reactions takes place. As a consequence of this reactions there will be generated a product solution with 0.8% NaOCI.
The occurring reaction can be described with the following short formula:
NaCI + H2O => NaOCI + H2
According to this formula during the production of ig NaOCI theoretically the ejection of 0.35I of hydrogen (conditions: 25°C, atmospheric pressure) occurs. The practical hydrogen ejection lies under this value. However, the ventilation system, which is responsible for supplying of a big amount of fresh air to dilute the hydrogen to a nonhazardous concentration, is designed for the maximal possible hydrogen production, to assure maximum safety.
Production
- electrolytic generation of active chlorine on-site as required from salt, water, electric current - autarkic and independent from the chorine industry
- electrodes with specially wide distance and long lifetime - 5 years manufacturer assurance
- integrated heat-exchangers for higher efficiencies particularly in winter time
- sensor controlled and programmable logic control (SPS) managed automatic process
- user-friendly operation of the whole process via personal computer
- assurance of the production via 2-lines-system
- variable adjustment of the system parameters to unsteady production requirements and use
Safety
- chlorine concentration under 1% - avoidance of hazardous substances like CI2
- hydrogen dilution to under 1%
- safe operation with automatic control
- turn-key putting into service of the whole equipment
- on-site training of stuff
- long-lasting consultation and maintenance servicing after the start-up, reliable full service from one source
