Aeris MIRA - Model Ultra Mobile LDS -Natural Gas Leak Detection System w/GPS

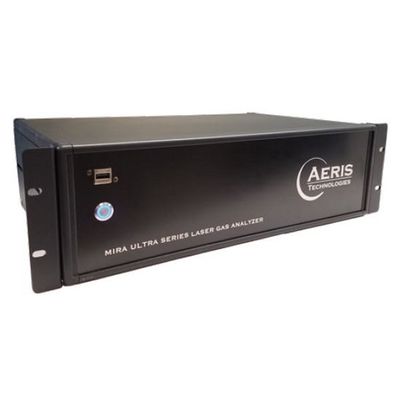

Measure Natural Gas Leaks with Unmatched Sensitivity, Accuracy and Thermogenic vs. Biogenic Discrimination Introducing the MIRA Ultra Mobile LDS, a high sensitivity/high accuracy methane/ethane gas analyzer from Aeris Technologies, Inc. The Ultra Mobile LDS combines our breakthrough laser absorption spectrometer with built-in GPS capability to produce the World’s most effective leak detection tool.
The Ultra Mobile LDS operates in the mid-infrared, achieving unparalleled, simultaneous methane and ethane quantification at the sub-ppb/s level. Natural gas is discriminated from common interfering methane sources such as vehicle exhaust and biogenic sources such as landfill and sewer gas. The unique ethane capability provides a natural gas discrimination capability 50 times greater than that of other laserbased analyzers, reducing false alarms that otherwise trigger unnecessary and costly ground surveys. Ultra Mobile LDS systems come in both portable as well as rack-mount versions, with an optional internal battery backup (2-3hr.) for temporary power interruptions
- Superior sensitivity: <1ppb/s CH4 , <500ppt/s C2H6
- Real-time analytics, statistics, GPS location
- Ultra-High sensitivity and accuracy
- Low-Drift via thermally stabilized optical core
- 1 or 2 Hz operation standard, up to 10Hz optional
- High accuracy GPS, magnetically mounted antennae
- Wi-Fi, RS232, flexible data streaming capability
- Lowest power consumption, solar powered versions
- Robust optical platform: 100x less sensitive to contamination than ”cavity-based” systems
- Water vapor measured to report dry mole fractions
- Data in .kml format for viewing in Google Earthtm
- Rapid install: no vehicle modifications required
