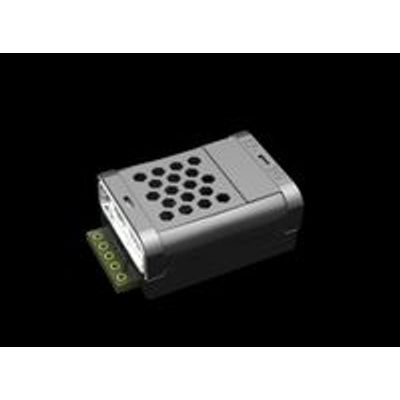

Senseair Sunrise - NDIR Sensors for Automotive

LED technology has long been a holy grail. The collaboration with Asahi Kasei (AKM), the company that also invented the Lithium Battery, has now made it possible to use the technology with sustained performance.

Ultra Low Power no longer has to come at the expense of accuracy. Senseair Sunrise Automotive is the new generation NDIR sensor with Optical Solid State technology. Electronics with no moving parts make this sensor robust and resistant to vibrations, which is ideal for automotive applications.

Optical solid state

Electronics with no moving parts make this sensor robust and resistant to vibrations. Any application in a tough environment or an environment with explosion risk is benefitted by the solid state design.

Ultra low power

Thanks to the next generation LED technology, this product has an ultra low power consumption: Average current 38μA^{2, 5}.

Self-calibrating

Mount and forget your sensor for the next 15 years and it will still be accurate thanks to the built-in self-correcting ABC-algorithm. Senseair has used Automatic Baseline Correction for three decades. About 6 million sensors are providing data every millisecond and every third ABC period, they will calibrate themselves. With wireless applications, it will be even more important to rely on a sensor you can mount and forget. Sunrise will continue the line of success.

Mass-producible

The design of the sensor optimizes the manufacturing process, and we are thus able to stay away from any manufacturing steps that require human handling. The production line is fully automated.

High precision

There is a fundamental relationship between invested power and measurement resolution in all electronic sensors. The more electrical energy you invest in the measurement, the more accurate the reading will be - therefore, obtaining high resolution measurements using a low power sensor is a challenge. Sunrise is the first NDIR sensor with LED technology that truly saves power while maintaining a high precision. Accuracy (CO₂) ±30 ppm ±3% of reading^1,3.

Three packages

Sunrise can be delivered as a sensor core - calibrated and ready to mount, but you will find more advantages in our other packages: Sensor onBoard and Sensor inCase. As the names suggest, we will design and manufacture the board with the sensor or ready-to-use packaging. The advantage is that calibration can be done after the sensor has been mounted, and that comes with extended warranties. We will also take responsibility for the design to be optimized around the sensor function (air flow etc.).

Standard specification

• Measured gas Carbon Dioxide
• Operating principle Non-dispersive infrared
• Measurement range (CO2)  400–10,000 ppm
• Accuracy (CO2)      Highest of ±200 ppm or ± 10% (0-50°C), Highest of ±200 ppm or ± 20% (-40-<0°C, >50-85°C)1,3
• Average current 34μA 2, 5
• Peak current  <165mA
• Measurement period  Adjustable by host, min 2 s (default measurement period 16 s)
• Power supply  3.05-5.5 V 4
• Dimensions 33.9 x 20.5 x 11.8 mm
• Weight 5 g
• Life expectancy  >15 years
• Operation range -40 – 85°C, 0-95% RH
• Storage temperature -40 – 105°C
• Serial communication UART, I2C

Note 1: 0 – 50°C, 0 – 80%RH, after three ABC periods, each period followed by ABC command set in the Calculation Control byte.

Note 2: Supply voltage 3.3V.

Note 3: Specification is referenced to uncertainty of calibration gas mixtures (±1%).

Note 4: Unprotected against surges and reverse connection

Note 5: Measurement period 16 seconds
