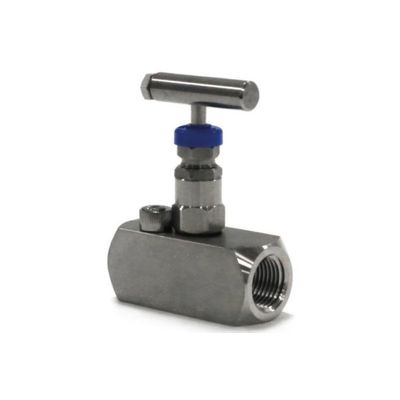

ALCO - Model N / UN Series -Needle Valves
The precision made ‘N’ Series, single isolation hand valve utilising metal to metal seat and body to bonnet connection for superior, bubble tight sealing capabilities at both extreme pressures and temperatures. The ‘N’ Series also offers non-rotating hardened tip for extended service life.
Most popular related searches
- Fire Safe Design
- UNI Directional Flow
- Servicing Kits
- Severe Temp Rating
- NACE Approved
- PSV8 Approved
The unique anti-vibration cam locking device at the body bonnet connection is for extra safety. Working pressures are 6,000 psi and 10,000 psi.
- Valve Types
- Single Isolate
- Pressure Rating
- 6000 - 10,000 psi
- Temperature Rating
- -40°C up to 230°C
- Bore Size
- 4mm - 8mm
- Connection Size
- 1/4" - 1"
- Inlets
- NPT
- BSPP
- BSPT
- Compression Ended (Single & Twin Ferrule)
- Butt Weld
- Socket Weld
- Outlets
- NPT
- BSPP
- BSPT
- Compression Ended (Single & Twin Ferrule)
- Butt Weld
- Socket Weld
- Handles
- T Bar
- Handwheel
- Lockable
