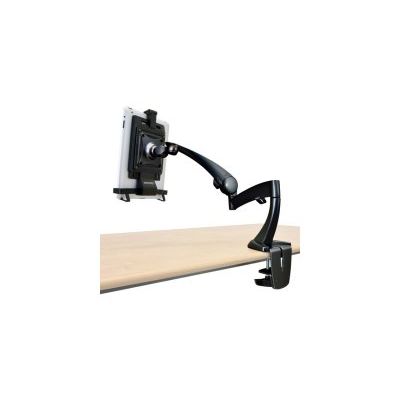

Neo-Flex - Desk Mount Tablet Arm

SHARE

Give your iPad or a similar tablet more flexibility. Just snap it into the cradle to free your hands: use a Bluetooth keyboard for intensive computing; position your tablet within your digital workflow by locating it alongside your main workstation monitor; move the screen where you can easily reference instructions or recipes. Turn, rotate, extend or retract your tablet with just a touch; push the arm’s side button to raise or lower it through an 8` (20 cm) height range. Place your tablet exactly where you want it.

Most popular related searches
shock and vibration
workstation
construction vibration
  • Works with many tablets and eReaders, including Apple iPad, Barnes & Noble Nook and Amazon Kindle
  • Easily remove the tablet from the cradle when you need to go mobile
  • The cradle’s adjustable contact points keep ports free
  • Sliding brackets allow adjustment to a variety of tablet sizes, with or without case †
  • The cradle firmly grasps tablet with latch for secure placement
  • The arm’s sturdy design maintains touch-screen stability
  • View tablet in portrait or landscape mode; easily rotate from one mode to the other
  • Arm can extend the tablet out up to 19.3" (49 cm) to the point of need
  • Robust construction dampens shock and vibration
  • Can be used to hold an LCD monitor when the tablet cradle is removed
  • Part Number: 45-306-101
  • Description: Neo-Flex Desk Mount Tablet Arm (black)
  • Includes arm, extension, desk clamp, grommet mount, tablet cradle
  • † Allowable Tablet Dimensions: minimum = 5.5" x 8" (14 x 20 cm); maximum = 8" x 9.75" (20 x 25 cm). Depth of tablet must be ≤ 0.75" (19 mm). If case is used, be sure to account for its space requirements
  • If cradle is not used, an LCD monitor with screen size up to 22" may be attached to the arm
  • * Maximum tablet weight = 2.5 lbs (1.1 kg). If tablet cradle is not used, an LCD monitor weighing up to 18 lbs (8.2 kg) may be attached to the arm
  • ‡ Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). Tablet cradle attaches to arm using the 100 x 100 mm hole pattern. If cradle is not used, a VESA-compliant monitor may be attached to the arm
  • Mounting Options: Desk Clamp attaches to surface edge up to 1.8" (46 mm) thick; Grommet Mount attaches through hole 3/8" to 2" (51 mm) wide and up to 1-3/4" (44 mm) deep
  • To change height of tablet, depress button on side of arm while positioning screen at desired height
  • Product Weight: 7.3 lbs (3.3 kg)
  • Shipping Dimensions: 18" x 14.5" x 6.5" (462 x 370 x 159 mm)
  • Shipping Weight: 9.5 lbs (4.2 kg)
  • Warranty: Three (3) years
