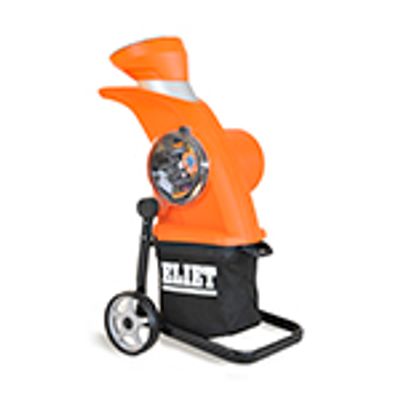

Neo - Shredders

EASY MAINTENANCE
A large opening is made available to the chipping chamber by opening the transparent hatch and removing the unbreakable safety cover The shaft that gradually becomes smaller ensures that you can easily gain access to the blades and can remove them from the machine for grinding.

COMPACT DESIGN
The ELIET NEO has been designed to fold up in no time at all. The volume of the machine will be halved when collapsed, which is immensely practical in order to store it away. The wheel frame can, moreover, be used to hang it from, for example, a wall.

FEED-IN OPENING
The feed-in opening of the NEO that is limited due to safety reasons was developed to ensure the least resistance possible when introducing material The opening can be modified to introduce seriously split branches.

LARGE CAPACITY
The aesthetically designed air openings were designed to provide the best possible air flow around the engine for maximum cooling. The user can, therefore, make use of the large capacity of this machine when chipping large volumes.

TRANSPARENT CHIPPING CHAMBER
The chipping chamber has been manufactured of highly technical plastic composite. This innovation allowed the designers to design a better chipping chamber with the best possible and fastest chipping flow. This material, moreover, is sound absorbing, which is beneficial with regard to the noise level of this chipper Thanks to the transparent window the user can see the chipping chamber and fcllcw the chipping process. ~his will ensure lhal he/she can prevent obstructions and can anticipate on when blades will be worn and need to be replaced.

POWER SOCKET
The power socket is beautifully integrated into the design of the machine. The cover will keep the plug in its place and will, therefore, prevent the plug from being pulled out whilst working. The cover will automatically close when the plug is pulled out.

LARGE WHEELS
The NEO has been equipped with strong aluminium 250 mm wheels with large tyres (65 mm). The ergonomic handle provides the user the best possible grip and, therefore, the user can move the chipper around his garden with a minimum of effort.

COLLECTION BOX
Why should we make things difficult for you when it comes to collecting chippings? NEO chippers come from the factory transparent collection box fitted. The plastic 50 litres capacity box slides easily under the machine and has been equipped with a magnetic safety switch. This makes it impossible for bystanders to open the collection box and injure themselves.

CALIBRATING SIEVE
The high cutting speed and a calibrating sieve with a grid with correctly dimensioned holes guarantee the production of small and uniform chippings.

LOW NOISE
The engine of the ELIET NEO is surrounded by rubber vibration-absorbing sound barriers. This ensures that the blade vibrations are not distributed through the complete chipping chamber.

Performance:

• Engine selection : 230 V / 1~ (not available in USA/Canada)
• Power (W/DIN HP) : 2500/3,5
• Shreddable timberdiameter : 30 mm / 1,2 inch
• Chopping speed (cuts/min) : 36.000
• Capacity : 6
• Shredding technology : ELIET Chopping PrincipleTM
• Knives : 12 ELIET RESIST(TM knives (reversible)
• Noise reduction : composite housing, vibration absorbing rubber silencers
• Collecting box capacity : 50 L / 11 gallon
• Feed height : 1140 mm
• Durability : thermal motor protection
• Chassis : composite
• Feed intake opening : clover 4x45 mm / 4x1.8 inch
• Safety : motor brake
• Storage dimensions (LxWxh in mm/inch) : 700x600x750 mm 28x24x30 inch
• Wheels (Ø x W / material) : 250x65 mm/alu 10x2.6 inch/alu
• Rotor : 2 discs with 12 blades in total
• Cutting width : 130 mm/5.2 inch
• Transmission : direct

Design

• Dimensions (LxWxH in mm/inch) : 700x600x1230 mm 28x24x49 inch
• Noise level Lw(A) : 94 dB(A)
• Weight : 40 kg / 88,4 pound

Options

• Poke : Poke
