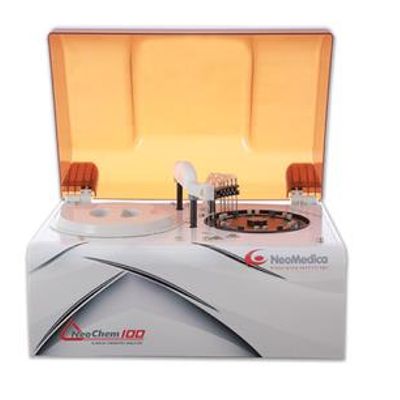

NeoChem - Model 100 -Automatic Benchtop Biochemistry Analyzer

With a brand new design, NeoChem 100 is a cost-effective solution ideal for small and medium-sized laboratories or a convenient back-up system for larger hospitals. Small in size, but great in performance, this bench-top, fully automated, compact, biochemistry analyzer is equipped with hot water 7-Step reaction cuvette washing system, on-board reagent cooling system and advanced photometric optical system with fiber optic. With 40 sample positions and random access feature, NeoChem 100 provides a comprehensive solution tailored to meet the needs of your laboratory. Upon request, the completely closed system can be provided for you, along with the high-quality bar-coded biochemistry reagents at most competitive prices.

• Testing speed  Up to 200 tests/hour   ( measuring cycle 18 s )
• Assay method  End Point (reagent or sample blank),
• Kinetic (Rate A, Rate B),
• Two Point
• Calibration mode  Single point,  Two point or  Multiple point,  Logit Log,  Segmentline, Exponential 5P,  Polynomial,  Poly4,  Spline Calibration Curve.
• Reagent tray  40 barcoded position for 5 ml and 20 ml bottles on removable tray
• Reagent volume  R1: 150 – 300 µl,    R2: 10 – 150 µl   in 1 µl step
• Sample tray  40 positions, samples can be placed randomly, including standard, QC and STAT samples in tubes or sample cups
• Sample volume  range  2 – 50 µl   in 0,1 µl step
• Reaction tray  60 reusable plastic cuvettes in 6 segments (5 mm optical path)
• Reaction volume  range  150 – 300 µl
• Reaction temperature  37 ± 0,1 ?
• Reagent  temperature  From 4 – 8 ?
• Photometer  9 wavelengths: 340, 405, 450, 510, 546, 578, 620, 660, 690 nm
• Static fiber optic system with multi wavelength reading
• Abs linearity  from 0,0000 up to 4,0000 Abs
• Wavelength accuracy   ± 2 nm
• Light source  12V / 20W long life halogen lamp
• Interface  RS232 (instrument-PC),   LIS supported
• Reagent detecting  Integrated bar code reader for reagents
• Alarms  Alarm for “Distilled water empty” and “Waste full”
• QC Rules  Multi QC function. For every test up to 3 different QC materijal
• Other specification  On-board mixer, Low water consumption, Automatic cuvette detection and selection, Minimal maintenance
• Dimensions  415 x 565 x 385 mm (WxDxH),  weight 28 kg
