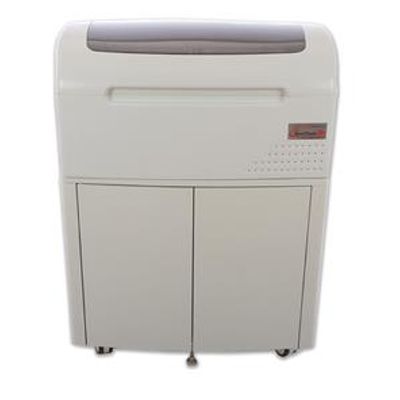

NeoChem - Model 30 -Fully Automated Benchtop or Standalone Biochemistry Analyser
FromNeomedica
NeoChem 30 is a flexible system for both routine and special chemistry workloads. On-board capacity of 71 samples and 60 reagents and throughput of up to 310 tests per hour. For analysis of serum, plasma, urine, cerebrospinal fluid (CSF), hemolysate and whole blood. It is equipped with one pipetting arm for reagent and another one for samples with stirrer (mixer) on board. Highly intelligent software can manage up to 20 virtual sample trays, so that 1080 samples can be edited simultaneously. This powerful machine enhances laboratory productivity and provides the user with great reliability in clinical results.
Most popular related searches
laboratory productivity
laboratory product
biochemistry analyzer
sample cup
water distillation
cuvette
biochemistry
water distiller
pipetting
assay
- Testing speed Up to 310 test/hour
- Assay method End Point, 2-Point End Point, Rate (Kinetic method), 2-Point Rate
- Bichromatic, Blank (Reagent & Sample Blank), Immunoturbidimetry
- Calibration mode Linear calibration: Single point, Multiple point ( up to 8 point)
- Non-linear calibration: Logit-Log 4P, Logit-Log 5P, Line Graph,
- Exponential 5P, Weibull, Spline.
- Reagent tray 60 position (30 x 20 ml and 30 x 50 ml bottles on removable tray)
- Reagent volume Range 5 – 500 µl in 0,5 µl step / dedicated reagent arm
- Sample tray 71 Positions for tubes or sample cups, includes routine samples,
- standard, QC and STAT samples
- Sample volume Range 2 – 100 µl in 0,1 µl step / dedicated sample arm
- Reaction tray 120 reusable plastic cuvettes in 6 segments (7 mm optical path)
- Reaction volume 150 – 900 µl
- Reaction temperature 37 ± 0,1 ?
- Reagent temperature From 2 – 8 ?
- Photometer 10 wavelengths: 340, 405, 450, 492, 510, 546, 578, 630, 700, 800 nm
- Static array spectrophotometric system with high resolution filters
- Abs linearity From -0,5 Abs up to 6,0 Abs with resolution 0,0001 Abs
- Wavelength accuracy ± 1 nm
- Light source 12V / 20W long life halogen lamp
- Interface RS232 (instrument-PC), LIS supported
- Water consumption Up to 6 lit/hour
- Alarms “Distilled water empty”, “Detergent empty” and “Waste full”
- QC Rules Multi QC function. For every test up to 3 different QC materijal
- Other features On-board mixer, Low water consumption, Automatic cuvette detection and selection, Minimal maintenance.
- Monitoring instrument status in real time, remaining volume of reagents, reaction curve, results…
- Dimensions 730 x 890 x 1120 mm (WxDxH), weight 83 kg
