Stanford - Model SMCN0773 -Neodymium Countersunk Magnet
FromStanford Magnets

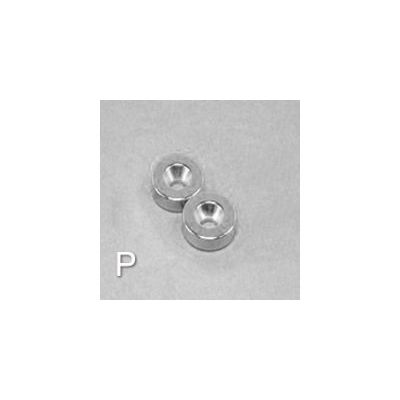

The SMCN0773 Countersunk neodymium magnet is made from high perfermance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2` od x 1/8` thick with countersunk hole for #4 screw, magnetized Through Thickness, with tolerance of ±0.004` x ±0.004` x ±0.004` x ±0.004`. The weight of this super strong neodymium magnet is 0.0123125 lbs. It can pull up to 5.35 lbs steel.
- Product ID: SMCN0773
- Material: NdFeB
- Shape: Countersunk
- Dimension: 1/2`` od x 1/8`` thick with countersunk hole for #4 screw
- Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
- Weight(Oz.): 0.2
- Grade: N42
- Coating: Nickel
- Magnetization direction: Through Thickness
- Magnetic Face: 1/2" od
- Pull Force(Lbs): 5.35
- Max Operating Temp(°C/°F): 80/176
