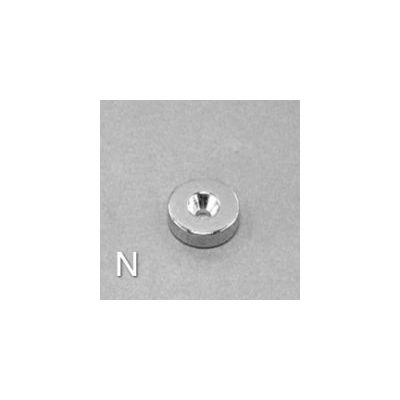

Stanford - Model SMCN0774 -Neodymium Countersunk Magnet
FromStanford Magnets
The SMCN0774 Countersunk neodymium magnet is made from high perfermance N42 NdFeB, with Nickel coating. The dimension of this item is 5/8` od x 1/8` thick with countersunk hole for #6 screw, magnetized Through Thickness, with tolerance of ±0.004` x ±0.004`. The weight of this super strong neodymium magnet is 0.00925 lbs. It can pull up to 7.15 lbs steel.
- Product ID: SMCN0774
- Material: NdFeB
- Shape: Countersunk
- Dimension: 5/8`` od x 1/8`` thick with countersunk hole for #6 screw
- Tolerances: ±0.004" x ±0.004"
- Weight(Oz.): 0.15
- Grade: N42
- Coating: Nickel
- Magnetization direction: Through Thickness
- Magnetic Face: 5/8" od
- Pull Force(Lbs): 7.15
- Max Operating Temp(°C/°F): 80/176
