Stanford - Model SMCN0271 -Neodymium Cylinder Magnet

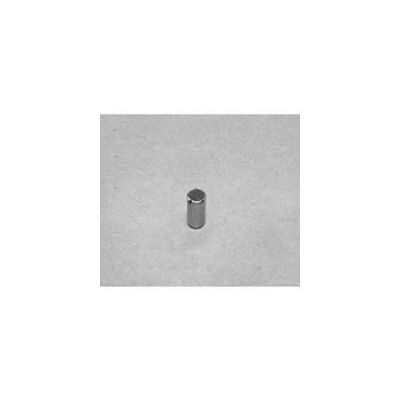

The SMCN0271 CYLINDER neodymium magnet is made from high perfermance N42 NdFeB, with Nickel coating. The dimension of this item is 1/8` dia. x 2/10` thick, magnetized Through Thickness, with tolerance of ±0.004` x ±0.004`. The weight of this super strong neodymium magnet is 0.0006625 lbs. It can pull up to 0.79 lbs steel. And the surface field is up to 6300 gauss.

Product ID: SMCN0271
Material: NdFeB
Shape: Cylinder
Dimension: 1/8`` dia. x 2/10`` thick
Tolerances: ±0.004" x ±0.004"
Weight(Oz.): 0.011
Grade: N42
Coating: Nickel
Magnetization direction: Through Thickness
Magnetic Face: 1/8" dia.
Pull Force(Lbs): 0.79
Surface Field(Gauss): 6300
Max Operating Temp(°C/°F): 80/176
