Stanford - Model SMCN0272 -Neodymium Cylinder Magnet
FromStanford Magnets

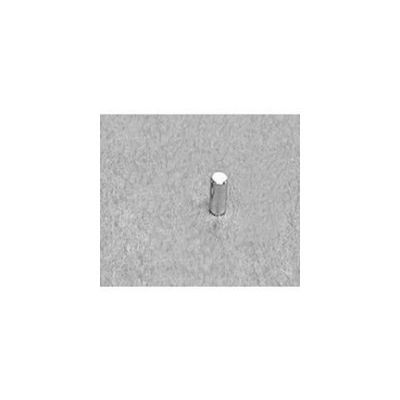

The SMCN0272 CYLINDER neodymium magnet is made from high perfermance N42 NdFeB, with Nickel coating. The dimension of this item is 1/8` dia. x 1/4` thick, magnetized Through Thickness, with tolerance of ±0.004` x ±0.004`. The weight of this super strong neodymium magnet is 0.00083125 lbs. It can pull up to 0.85 lbs steel. And the surface field is up to 6403 gauss.
- Product ID: SMCN0272
- Material: NdFeB
- Shape: Cylinder
- Dimension: 1/8`` dia. x 1/4`` thick
- Tolerances: ±0.004" x ±0.004"
- Weight(Oz.): 0.013
- Grade: N42
- Coating: Nickel
- Magnetization direction: Through Thickness
- Magnetic Face: 1/8" dia.
- Pull Force(Lbs): 0.85
- Surface Field(Gauss): 6403
- Max Operating Temp(°C/°F): 80/176
