Neron Pumps

- Model HWB 300 - High Pressure Water Pumps

From

0

Features : FEEDING  : Selfpriming (up to 5 mt ) or discharge. CALIBRATION : Unloader valve or piloted by-pass  valve. SECONDARY FLUID : Fresh water, Glycole, Chemicals. WATER TEMPERATURE: Old or hot water  with thermal valve (up to 60° C);. OIL TEMPERATURE : Max 70 °C.

  • OIL FLOW : Up to 80 l/m with flow limiting valve
  • RISK : None, Safety devices adopted  both oil and water side
  • MATERIAL: Brass, Anodized aluminium, Stainless steel, Special seals
  • PISTON MATERIAL: Ceramic allumina 99% & stainless steel
  • DIMENSION: 270x121x125 mm
  • WEIGHT : 8,5  kg
  • INSTALLATION : Fixing holes on two sides
  • INLET AND OUTLET OIL PORT : ½” BSP F
  • WATER INLET PORT : ¾” BSP M
  • WATER OUTPUT  PORT: M22x1,5; 3/8” NPT F; ½” BSP M

  • Technically unbeatable
  • Full power and trust
  • Small size
  • Easy to carry
  • Simple installation
  • Connect and use
  • Installation in any position
  • Safety devices adopted
  • Low noise and low vibrations
  • Running in any environment conditions Water cost and volume saving
  • Low maintenance required
  • Long life thanks to the oil self-lubrication
  • Anti explosion, anti sparks, anti electric shock
  • Connection with chemical ejector, soap, solvents or additives
  • Cost effective

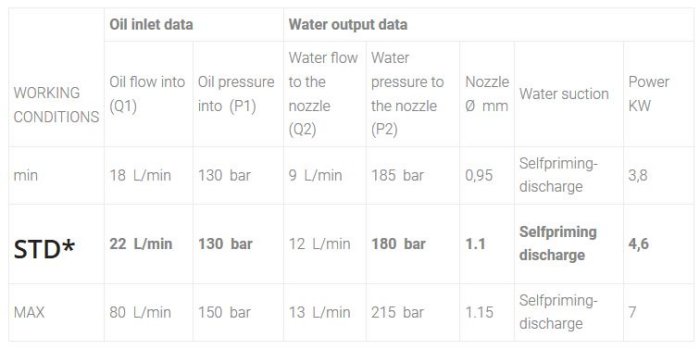

*STD  Standard calibration done by Neròn. Different or adjusted calibration done upon customer’s request.

The above stated values are subject to variations depending on the oil temperature of the hydraulic system.

  • Water filter ¾” BSP FF 80 mesh, hose barb, pressure gauge, flow limiting valve block (on request)
