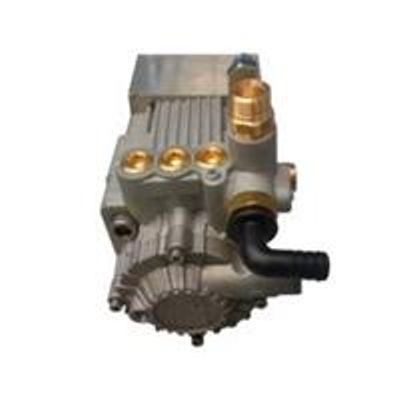

Neron - Model HWB 8040 - Type By-Pass -Dust Suppression Pump

Technically unbeatable, full power and trust, small size, easy to carry, simple installation, connect and use, installation in any position, safety devices adopted, running in any environment conditions, water cost and volume saving, low maintenance required, long life thanks to the oil self-lubrication, anti explosion, anti sparks, anti electric shock, cost effective, low noise and low vibration.

Most popular related searches

FEEDING : Self priming (up to 5 mt ) or discharge
CALIBRATION : Unloader valve or piloted by-pass valve
SECONDARY FLUID : Fresh water, Glycole
WATER TEMPERATURE : Cold or hot water (up to 80°C), Water by-pass to tank (by-pass)
OIL TEMPERATURE : Max 70 °C
RISK : None, Safety devices adopted both oil and water side
MATERIAL : Anodized aluminium, Stainless steel, Brass, Special seals
PISTON MATERIAL : Stainless steel
OIL FLOW : Max 20 l/m
DIMENSION : 270 x 121 x 125 mm
WEIGHT : 7.5 Kg
INSTALLATION : Fixing holes on two sides
INLET AND OUTLET OIL PORT : ½” BSP F
WATER INLET PORT : ¾” BSP M
WATER OUTPUT PORT : M22x1,5 – ½” BSP M – 3/8” NPT F

*STD Standard calibration done by Neròn.. Different or adjusted calibration done upon customer’s request. The above stated values are subject to variations depending on the oil temperature of the hydraulic system.

Water filter ¾” BSP FF 80 mesh, hose barb

Neron - Model HWB 8040 - Type By-Pass -Dust Suppression Pump

Features

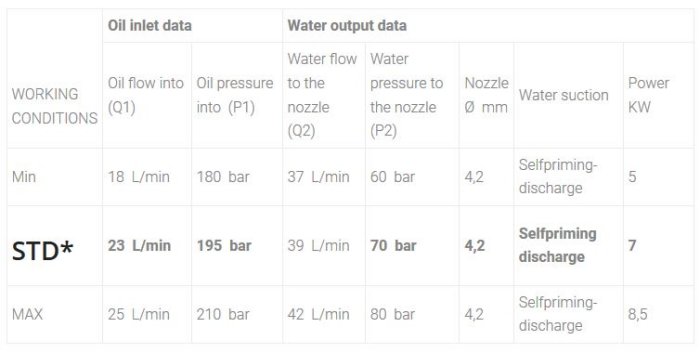

Performance
