In-Situ TROLL - Net Hub

SHARE

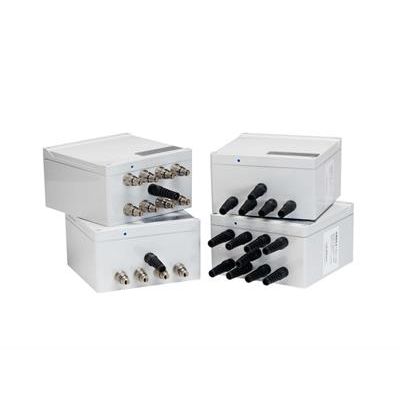

The TROLL Net Hub is a networking device that connects up to four or eight instruments into your telemetry or SCADA/PLC system. The hub is ideal for long-term remote site monitoring and process control, including applications like aquifer characterization and nested well monitoring. You can customize the system by linking a variety of In-Situ sensors, and even connect multiple hubs to network up to 16 devices. The Net Hub supports twist-lock or stripped-and-tinned cables.

Most popular related searches
water quality monitoring network
remote site monitoring
water quality monitoring
water level monitoring system
water quality monitoring system
remote monitoring
water level monitoring
telemetry system
site monitoring
water quality
  • Low power consumption (8-36 VDC)
  • Can use solar or 9 V battery
  • Instrument power-sharing function
  • Each cable has a maximum length of 4000 feet (1219 m)
  • Modbus/RS485 communications protocol (no SDI-12 or 4-20 mA)
  • Collect more data faster – Hub lets you remotely monitor data from up to 16 devices.
  • Extend instrument battery life — Hub passes power to attached instruments when connected to external power.
  • Easy data access – View data from all instruments when connected to In-Situ telemetry systems.
  • Save time – Power-saving functions and remote access mean fewer trips to the field.
  • Four or eight port TROLL Net Hub
  • Instruction sheet
