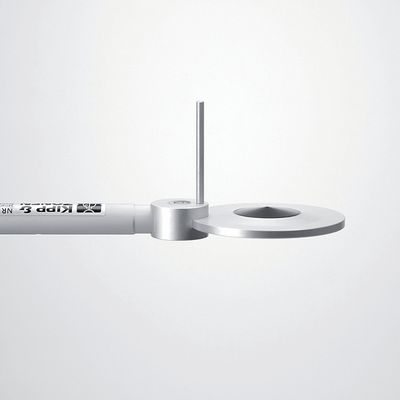

Kipp & Zonen - Model NR Lite2 -Net Radiometer
NR Lite2 is designed for routine measurement of net radiation which is the balance between incoming and outgoing radiation under outdoor conditions. The design of the NR Lite2 is unique. The double-sided detector has black conical absorbers with an anti-stick weather resistant protective coating. The NR Lite2 has a virtually maintenance free design. The output voltage is proportional to the net radiation. It can be directly connected to voltmeter or data logger with an mV input.
Virtually maintenance free
The design of the NR Lite2 is unique. The double-sided detector has black conical absorbers with an anti-stick weather resistant protective coating. In contrast to other sensor designs, NR Lite2 requires no fragile plastic domes.
Easy to use
The output voltage is directly proportional to the Net-radiation
Easy mounting
The built in bubble level and 80 cm rod makes it easy to mount and level the NR Lite2
Technical Attributes
- Non-linearity: < 1%
- Operating Temperature Range: -40 - +176 °F (-40 - +80 °C)
- Output: Analog combined Net radiation up and down
- Response Time: < 20 s
- Sensitivity: 10 µV/W/m²
- Spectral Accuracy: 0.2 - 100 µm
- Temperature Dependency: - 0.1 % / °C (typical)
