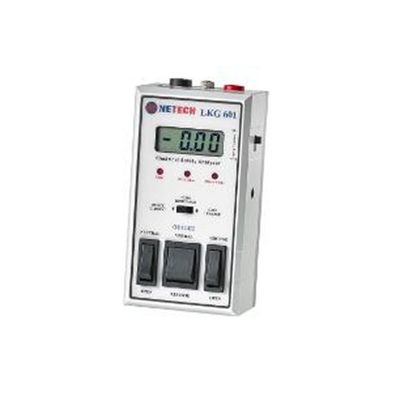

Netech - Model LKG 601 -Basic Electrical Safety Analyzer
With the LKG 601 Electrical Safety Analyzer, you’ll never have to worry about missing routine safety testing of your electrical equipment. Intentionally designed to be highly portable, you can always have it one hand. This analyzer was specifically created to test non-ECG equipment; all vital safety parameters – including ground resistance, leakage current, and instrument current - are conveniently displayed on its large LCD.
With its unique operating features, the LKG 601 outperforms all other basic analyzers. To insure accuracy of the instrument, each test has calibrated test points. The accessible instrument fuse solves the maintenance problems of built-in fuses. The selectable test load provides testing flexibility. The LKG 601 meets both AMMI and IEC 601-1 Standards.
Delivered with a standard soft carrying case and red resistance test cable, the LKG 601 is simply the best selection for routine electrical safety testing of all your electrical equipment.
- Easy to use
- Fast, Accurate and Portable
- Large LCD
- Accessible Line Fuse
- Selectable Test Loads
- Calibrated Test Points
- 15 and 20 Amp capability
- Complies with AAMI or IEC 601-1 Test Loads
- Display: LCD 3 ½ digits
- Measures: Ground Resistance, Leakage Current, Int. & Ext. Instrument Current.
- Operating Voltage: 110VAC or 220VAC (Option)
- Measurement Range: Resistance: 0 -1999 Milli Ohms, Leakage Current: 0 -1999 uA
- Instrument Current: 0 -19.99 A
- Accuracy: Resistance: ± 2% ± 1 LSD, Leakage: ± 1% FS DC to 1 kHz ± 1 LSD ± 2 % FS DC 1 kHz to 100 kHz ± 4% FS 100 kHz to 1 MHz
- Instrument Current: ± 2% ± 1 LSD
- Dimensions: 6 x 3.25 x 2.25in (15.24 x 8.26 x 5.72 cm)
- Weight: 1 lbs (0.9kg)
