Geoplast - New Elevator Tank
NEW ELEVETOR is an element made of recycled polypropylene for the creation of tanks or crawl spaces in the foundations; it is composed by a support base 58x58 cm that guarantees the tubes verticality and an easy and fast place and then, by a formwork 58x58x15 cm which should be wedged in the tubes upper part allowing the reduction of concrete consumption.

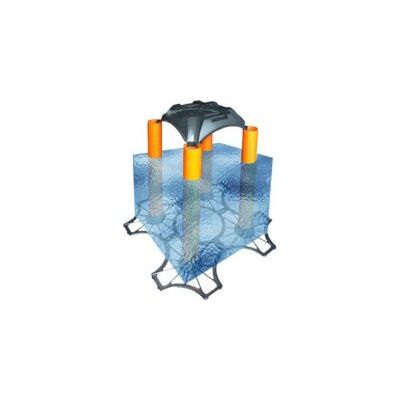

Accumulation tank made of reinforced concrete. NEW ELEVETOR TANK is the system for the realization of cast on-site tanks for water storage.
The advantages
- Patented grille to guarantee the perpendicularity of the pvc tubes
- Creation of water accumulation tanks in limited spaces
- Volume, size and shape are customizable
NEW ELEVETOR TANK, not only guarantees a high resistance to any load and an optimum adjustment for any area prone to heavy traffic conditions, but also it provides a significant storage for water.
A system made up of laminated accumulation tanks for rainwater, lightweight and poured on-site. The aim is to prevent flooding in new urban areas and respect the local regulations. This accumulation tank can be used to restore water intended to irrigate green areas or to create a fire fighting water reserve tank in public buildings. This leads to an eco-friendly use of water.
Our system main advantages are:
STABILITY: the base grid allows the system to maintain the pillars perfectly vertical to guarantee an high load bearing capability of the slab
QUICK: the grid allows the system to be placed quicker than any other alternative system The installation surface guarantees then a high productivity on-site
RESISTANT: NEW ELEVETOR TANK structure allows a perfect cargo-sharing, in order to install the system even under heavy traffic areas
CAPACITY: NEW ELEVETOR TANK allows the creation of high capability storage tanks exploiting a small surface

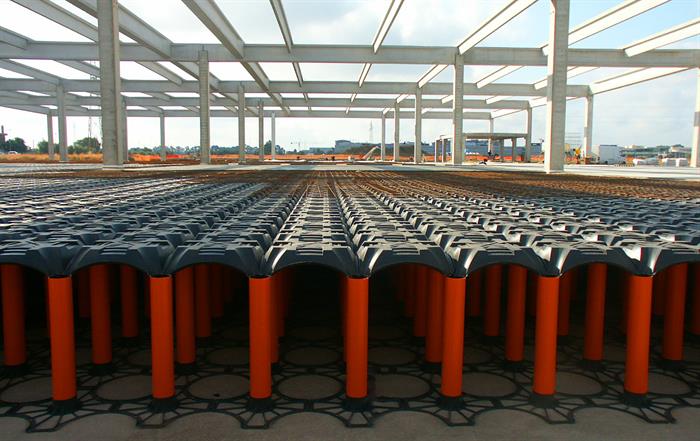

NEW ELEVETOR is suitable for the construction of a ventilated crawl space with a significant reduction of the concrete consumption and installation time; moreover, it allows the installation of plumbing or electric wires. The system
versatility allows the building of foundation slabs of different depths depending on the design requirements. Furthermore, the innovative base GRID guarantees
a simple and fast installation of the PVC tubes which sustain the entire system, while mantaining them perfectly vertical during the pour.
LARGE SCALE SCTRUCTURES Thanks to its easy installation, with NEW ELEVETOR system it is possible to fill excavations filling and overcoming gaps
quickly even in the case of large foundations.
INDUSTRIAL BUILDINGS The systems allows the construction
on-site of high crawl spaces, avoiding having to fill them with inert material
and making it possible to use the so-created space for the installation of wires or pipes.
RESIDENTIAL BUILDINGS: NEW ELEVETOR creates a gap of variable height in order to protect the residential buildings from the rising damp and RADON, a radioactive gas from the subsoil which is harmful to human health.
ACCESS RAMPS Thanks to its modularity, NEW ELEVETOR system allows the
overcoming of the level differences, even for the transit of heavy vehicles or trucks.
ROOTS APPLICATION NEW ELEVETOR ROOTS is used to preserve the growth of tree roots along the roadway. Usually, the rooting space is hindered by cables, sewages or road underground layers.
ELEVETOR TANK is the ideal solution for the fast construction of storage concrete tanks of variable height which can be used for the storage of high quantities of rainwater in a small space.
STEPPED SURFACE ELEVETOR allows the construction of structures with
various levels such as staircases or stepped extensions. The simple and fast installation of the system avoids the filling with inert material whom would be very complicated to deal with.
