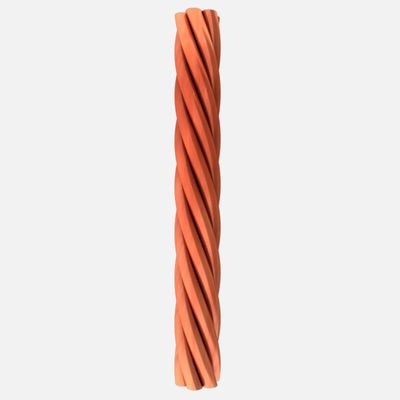

Nexans - Model CRE 19X1,60 38,2 -Bare Copper Conductor

Construction characteristics
Conductor flexibility: Stranded
Conductor material: Bare copper
Conductor shape: Circular
Insulation: -
Outer sheath: -

Dimensional characteristics
Approximate weight: 355 kg/km
Conductor cross-section: 38.2 mm²
Maximum outer diameter: 8.0 mm
Nominal outer diameter: 8.0 mm
Number of cores: 1
Total number of wires: 19
Wire diameter: 1.6 mm

Electrical characteristics
Max. DC resistance of the conductor at 20°C: 0.486 Ohm/km
Rated Voltage Uo/U (Um): 18 / 30 (36) kV

Mechanical characteristics
Calculated breaking load: 14.8 kN

Usage characteristics
Length: 2900 m
