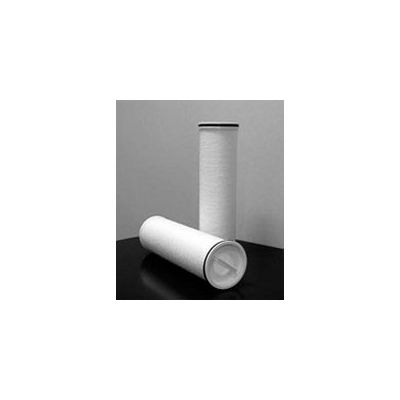

Nexis - High Flow Series Filter Elements
The Nexis High Flow filter is a large-diameter, coreless, single-open-ended depth cartridge with inside-to-outside flow. It is available in a variety of proprietary melt-blown filter media in ratings from 10 µm to 100 µm. With its large diameter (152.4 mm [6 in]), desired results can beachieved in high flow rate applications with significantly fewer elements and smaller housings.
For detailed information about this product, please refer to the data sheet. (To download this data sheet, select Download PDF from the menu above.) Products in this datasheet may be covered by one or more patents, including EP 830,191; US 5,591,335; US 5,653,833; US 5,681,469; US 5,690,782; US 5,730,820; US 5,733,581; US 5,741,395; US 5,783,011.
- Coreless all-plastic construction reduces waste
- High flow capacity significantly reduces system size and frequency of filter changeouts
- Variety of lengths and media grades available
- Absolute-rated filter medium allows for reproducible performance1
- Features proprietary CoLD Melt technology using a gradient pore structure
- Inside-to-outside flow traps contaminants inside the filter, preventing discharge during changeout
- Handle for easy filter replacement
- Maximum operating temperature2
- 65.5°C (150°F)
- Maximum operating differential pressure3
- 2.9 bard @ 20°C / 42 psid @ 68°F
- 1.03 bard @ 65.5°C / 15 psid @150°F
- Recommended differential pressure for changeout4
- 2.4 bard (35 psid)
Materials
- Media: Polypropylene with high-density polyethylene
- O-ring seal: Fluorocarbon, nitrile, ethylene-propylene rubber
- End caps: Glass-fiber-reinforced polypropylene
Dimensions (nominal)
- Outside diameter: 152.4 mm (6 in)
- Length: 508 mm (20 in), 1016 mm (40 in), 1524 mm (60 in)
