Nexom EDI - Model MaxAir -Coarse Bubble Aeration

The primary advantage of this technology is its robust design and ability to mix. First, the circulation and turbulence created by the static tube ensures that the entire water column is mixed adequately and sludge accumulation is limited. Second, the fact that there are no moving parts in the water and the orifices are less prone to clogging makes this a very robust solution.

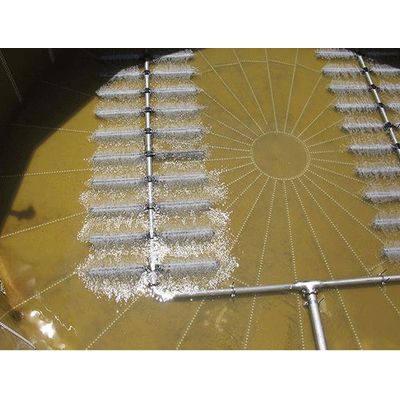

Otherwise known as large bubble diffusers, coarse bubble diffusers get their name from the type of bubble they produce. Coarse bubble diffused systems are composed of dozens to hundreds of coarse bubble diffusers, each attached to a PVC or stainless steel air supply line fixed to the bottom of the lagoon. The most common coarse bubble aerator for lagoons is what is known as a static tube. When large bubbles are released at the bottom of the tube, they create an effect whereby water is pulled from below the static tube and pushed towards the surface.

• 316 stainless steel construction
• High-temperature resistance—will not fail in high-temperature settings
• Clog resistant—designed for harsh environments
• Highest airflow capacity for efficiency
• Rugged heavy-duty construction for worry-free maintenance
• Excellent for mixing and for demanding applications
