- Schneider - Model NF418L1 - NF ...
Most popular related searches
Product availability: Stock - Normally stocked in distribution facility

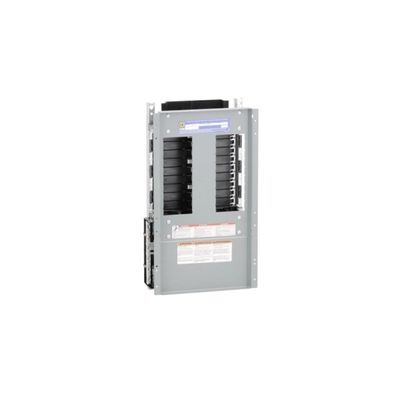

- Interior for NF Panelboards
- 3 phase system with 18 pole spaces
- 125A main lugs with aluminum bus
- Voltage ratings of 600Y/347VAC max
- Interiors are field convertible to top or bottom feed
- Environmental performance of the product Learn more
Main
- Panelboard Type: Main lugs
- Branch Circuit Breaker Type: EDB/EDG/EDJ
- Busbar Material: Aluminium
Complementary
- number of spaces: 18
- Enclosure Nominal Height
- 26 in (660.40 mm)
- 38 in (965.20 mm)
- Enclosure Nominal Width
- 20 in (508.00 mm)
- Enclosure Nominal Depth
- 5.75 in (146.05 mm) NEMA 1
- 6.5 in (165.10 mm) NEMA 3R/5/12
- Line Rated Current: 125 A
- [Iu] rated interrupted current: 65 kA
- wiring configuration: 4-wire
- Number of Phases: 3 phase
- Voltage Rating: 600Y/347 V AC
- connections - terminals
- Lug line AWG 6...AWG 2/0 aluminium/copper
- Lug neutral AWG 6...AWG 2/0 aluminium
- tightening torque
- 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0)
- 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0)
- 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) (AWG 6...350 kcmil)
- 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) (AWG 6...250 kcmil)
- 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) (AWG 4...300 kcmil)
- Height: 21 in (533.40 mm)
- Width: 10.44 in (265.18 mm)
Environment
- standards
- CSA C22.2
- UL 67
Ordering and shipping details
- Category: 08350-NF MLO INTERIOR RTA
- Discount Schedule: PE1A
- GTIN: 785901871286
- Nbr. of units in pkg.: 1
- Package weight(Lbs) 14.29 lb(US) (6.48 kg)
- Returnability: Yes
- Country of origin: MX
Packing Units
- Unit Type of Package 1: PCE
- Package 1 Height: 6.42 in (16.3 cm)
- Package 1 width: 13.82 in (35.1 cm)
- Package 1 Length: 26.30 in (66.8 cm)
Contractual warranty
- Warranty: 18 months
