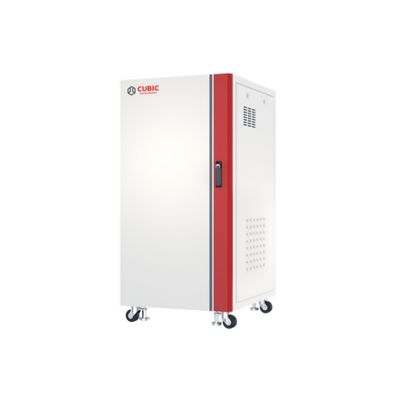

Cubic Instruments - Model Gasboard-9809 -NH3/N2O Emission Measurement System
Gasboard-9809 is a high-end engine exhaust emission analysis system designed for NH3 and N2O measurement to address the newly introduced NH3 & N2O emission monitoring requirements under the latest regulations such as Euro 7. The system employs TDLAS technology for precise NH3 measurement and QCL-based laser spectroscopy with ultra-high sensitivity for N2O detection, delivering high measurement sensitivity, strong resistance to interference from background gases, and fast response for real-time online monitoring under dynamic engine operating conditions. Gasboard-9809 features independent sampling, pretreatment, and data analysis units, ensuring stable system operation and reliable measurement performance. The system can be deployed alongside existing Euro 6 exhaust emission analysis systems, enabling NH3 and N2O measurement without restructuring existing exhaust testing setups and supporting a smooth transition toward Euro 7 compliance.Most popular related searches
nitrous oxide emissions monitoring
emissions analysis system
nitrous oxide monitoring
vehicle emissions gas analyzer
nitrous oxide emissions
emissions monitoring
ammonia monitoring
exhaust emissions
analysis system
emissions analysis
- Compliance with major international emission testing standards, including Euro 7 and CFR 1065, for light- and heavy-duty vehicle certification testing.
- High-sensitivity, accurate NH3 and N2O measurement, supporting a wide range of fuels, vehicle types, and test conditions.
- Strong resistance to cross-interference from background gases, such as CO2 and H2O, under complex exhaust conditions.
- Independent system design, allowing deployment alongside existing Euro 6 exhaust emission analysis systems to support Euro 7 testing requirements.
- Real-time data display and remote control, compatible with automated exhaust emission testing platforms.
- Measurements: NH3, NO2
- Range: NH3: 0~500ppm；N2O: 0~500ppm；Other range can be customized.
- Resolution: 0.1ppm
- Accuracy: ≤2% of reading or ≤0.3% F.S.
- Operating Temperature:（-7 ~ 50）℃
