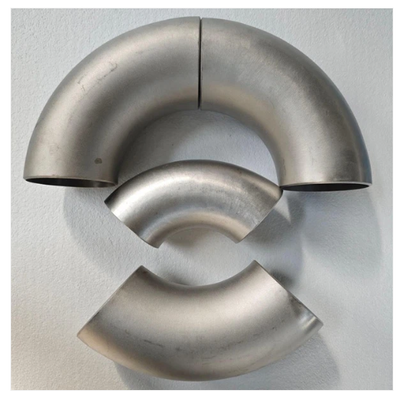

Fuqi - Nickel Welded 90 Degree Elbow
Material: Nickel. Grade: NI200, NI201. OD: DN100-DN1200; 5"-46"; 114-1200mm. Type: 1.5D, 2D, 3D, 5D elbow. Type1: Welded Elbow. Type 2: Long Radius, Short Radius.
Most popular related searches
- The radius of curvature of a long radius elbow is 1.5 times the diameter of the pipe,
- The radius of curvature of a short radius elbow is equal to the diameter of the pipe.
- Degree:90 degree
- Thickness: Sch5s, Sch10s, Sch40s, STD, Sch40, Sch60, Sch80s, Sch80
- Surface Treatment: Pickling, Polished, Sandblasting
- Elbow Standard: ASME B16.9

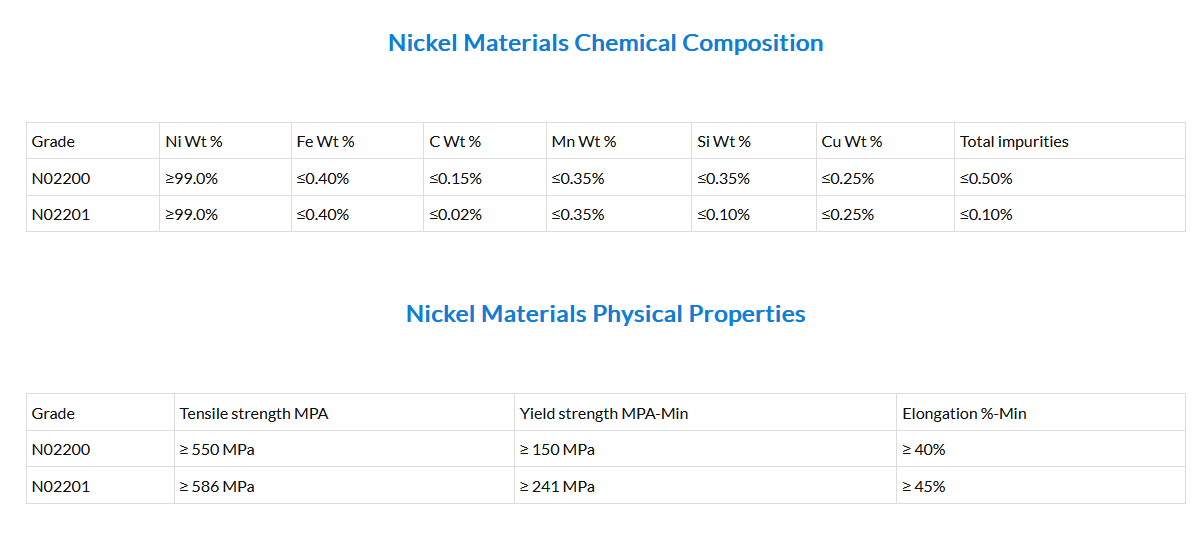

- Material Standard: ASTM B862
- Welding Method: TIG, GTAW, 2PCS WELDING LINES
- Inspections: 100% RT X-Ray, 100% PT, MTR
- Accept customized shape Nickel Welded 90 Degree Elbow according detail drawing
