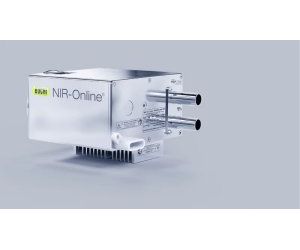

BUCHI - NIR™-Online Multipoint Sensor System
Maximal efficiency with up to 10 measurement points in parallel. Continuously monitor key parameters such as moisture, protein, fat, ash, starch, fiber, oil at any process step with NIR-Online Multipoint Sensor. Innovative Multipoint heads provide maximal efficiency for up to ten measurement points in parallel possible.
Economical solution:Extend one Multipont sensor with up to nine Multipoint heads
IP class/ATEX:II 1/2 EX op is ta IIIC T135°C Da / EX op is tb IIIC T135°C Db IP65
Planable maintenance:Failsafe dual lamp system with automated spare lamp activation

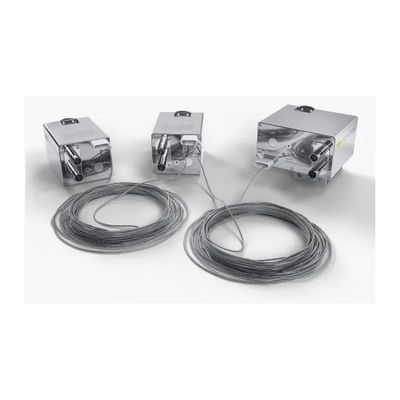

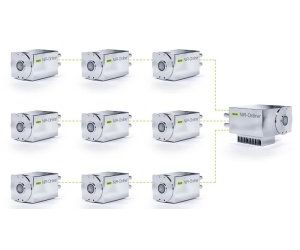

Cost-efficiently control your entire process for up to ten measuring points. Reduce your use of costly optical fibers thanks to our patented daisy chain connection of Multipoint heads. Generate reports automatically and obtain instant documentation with the system's auditing function for more convenience and time-saving benefits.
With an average return of investment of one year or less, you can earn back your money astoundingly fast. Benefit from additional cost-savings thanks to immediate process corrections that reduce waste and needless repetitions. Plus, optimize key process parameters to achieve top profit margins.
Thanks to the robust design of the NIR-Online Multipoint Sensor, you can confidently operate the instrument in harsh conditions of vibrations, temperatures, or humidity. The NIR instrument is also ingress protected (IP65) and ATEX certified (Dust-Ex). The intuitive user interface and simple integration to existing process control systems allow you to immediately gain maximal efficiency.
Most convenient software tool available on the market for automated calibration development and maintenance. Valuable calibration data remains with you at all times - no need to outsource to external agencies. Simply enter the new reference value into the software and confirm via a simple click. No export/import functions, no manual calibration routines or extensive background in chemometrics are required. Eliminate the need to develop extensive in-house calibrations or purchase calibration data bases.
Triple temperature stabilization
- With NIR-Online Multipoint Sensor, reliably measure up to ten measurmeent points
- Confidently work with product temperatures of up to 70°C
- Add a water chiller for product temperatures of up to 130°C
- Together with an air nozzle, operate the NIR-Online Multipoint Sensor in an environment of up to 55°C (voids ATEX).
Certified safety for hazardous environments
- Multipoint sensor and heads are certified for utilization in dust-ex atmospheres. Suitable for use in zone 21 and 22, where the sensor and heads are installed.
- Flexible installation
- Ingress protection
- All materials in contact with the product are food grade quality
