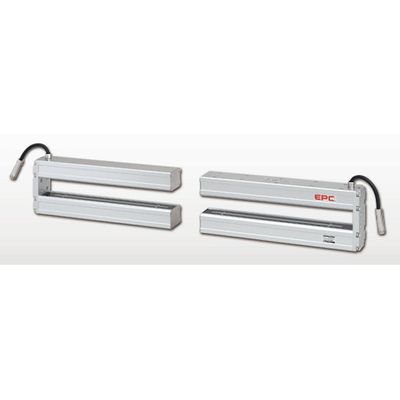

NIRECO - Model AWE280A -Autowide Sensor
This optical sensor for the detection of the position of (non-transparent) webs has a wide field of view (280mm) so there is no need to move the sensor to the web end position every time the web width changes.
Most popular related searches
optical sensor
surface sensor
light sensor
water proofing
aluminum anodizing
sensor system
position sensor
condensate sensor
optical detection
- This high-performance sensor can be used for both EPC and CPC systems.
- It can also detect webs made of fabric or other lighttransmitting material.
- It can be also used in environments where there is slight amount of dust or occasional drops of water.(Drip-proof finish of IP54 Standard equivalence)
- If the detection sensitivity declines, a warning signal will be output.
- The power-saving design means that the power supply box (PR15X) that was formerly required when two AWE280 sensors were used, is now no longer required.
- Supply power voltage : +15V DC (200 mA)
- Sensor output signal : When fully closed: DC 0 V. When fully open: DC +5 V (load resistance of at least 2 k)
- Sensor gap : 50 mm
- Range of measurement : 280 mm (Mounting face reference 80 mm to 360 mm)
- Light source : Red chip LED (peak wavelength of 660 nm) diffuse light source
- Sensor element : 0.042 mm/pixel
- Sensor response time : 3 ms
- Ambient humidity : 0 to +50°C 35 to 85% RH (no condensation)
- Body material : Sensor casing: aluminum alloy/cover: SUS304)
- Surface treatment : Sensor casing: white anodized aluminum cover: untreated
- Mass : 3.8 kg
- Basic drip – proof construction : Certified to IP54
