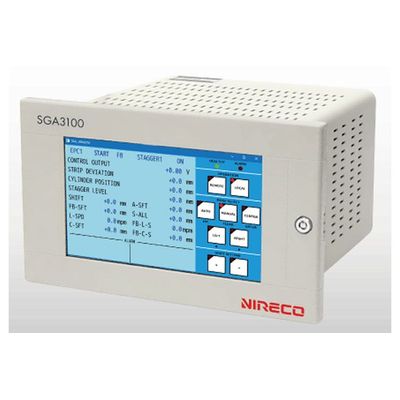

NIRECO - Model SGA3100 -Strip Guide Amplifier
Equipped with advanced control functions, such as stagger winding and cascading control. Equipped with a data logger function for improved maintainability.
Most popular related searches
- A color touch panel is adopted, making it easier to check the setting values and control status.
- Various parameter settings can be changed just by using the color touch panel.
- In addition to the conventional I operation, P operation, and PI operation, it is possible to control using PD operation, ID operation, and PID operation.
- A line speed signal input enables automatic adjustment of control gain to compensate for changes in line speed. PLG signal input enables stagger winding.
- Sensor signals can be taken from up to two sensor systems, enabling cascading control operation.
- A data logger function has been added to improve maintainability.
- Connectable Sensors : Inductive auto wide “AWI”, auto wide (LED type) “AWL”, linear sensor “LS?”, NS sensor “NS”, photo head (LED type) “PH50, PH51” *PH board, LED dimming unit, detect relay are required.
- No. of Connection Sensors : Four sensors in two systems
- Display, operation : Color touch panel

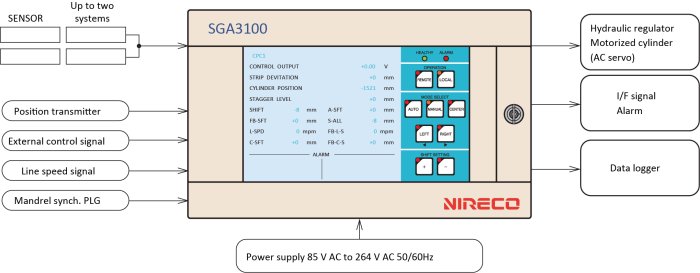

- Input :
- External I/F signal :±10 V DC
- Position transmitter :0 to 2 kΩ, 4 to 20 mA DC
- Line speed :0 to 10 V DC or 4 to 20 mA DC
- PLG signal :Pulse signal (0 to 12 or 0 to 24 V DC)
- Max. frequency 10 kHz
- Output :
- Control signal ±200 mA DC load 20 Ω (max)
- Shift amount ±5 V DC load 1 kΩ (min)
- Cylinder position ±5 V DC load 1 kΩ (min)
- Strip deviation ±5 V DC load 1 kΩ (min)
- Alarm :
- Lamp-1 out, lamp-2 out, rollout, no plate, deviation excessive, oil pressure low, oil temperature high, oil level low, filter clogging
- Transistor output (photocoupler insulation) + 24 V DC/100 mA
- Other Features :
- Data Logger RS-232C output
- Fieldbus interface (Profibus, etc.)
- Power : 85 V AC to 264 V AC 50/60 Hz
- Power Consumption : 100 VA
- Ambient Temperature : 0ºC to 50°C
- Mass : 5 kg
- Protective Structure : IP40 equivalent (for standalone use)
